11kv 440v Pole Mounted Substation

Conso Electrical Science and Technology Co.,Ltd. is a manufacturer to produce distribution transformer and outdoor low voltage distribution box. They are the main component in a 11kv 440v Pole Mounted Substation. To keep the competitive, Conso Electrical start to provide the other accessory of a 11kv 440v Pole Mounted Substation in 2016. during those year, the company achieved the great success that won the tenders of State Gird Corporation in Inner Mongolia, Sichuan, Heilongjiang each year.

Send Inquiry

Product Description

Feel invited to visit our cutting-edge facility and explore the opportunity to acquire the latest, cost-effective, and superior 11kV 440V Pole Mounted Substation. Step into a realm where quality meets affordability, and cutting-edge technology converges with your power needs. We eagerly anticipate the prospect of collaborating with you, ensuring a seamless partnership that aligns perfectly with the dynamic landscape of the electrical power industry. Your journey towards reliable and efficient power solutions starts here, and we are ready to embark on it together. Visit our factory, where excellence in products and collaboration awaits.

Video

11kv 440v Pole Mounted Substations Introduction:

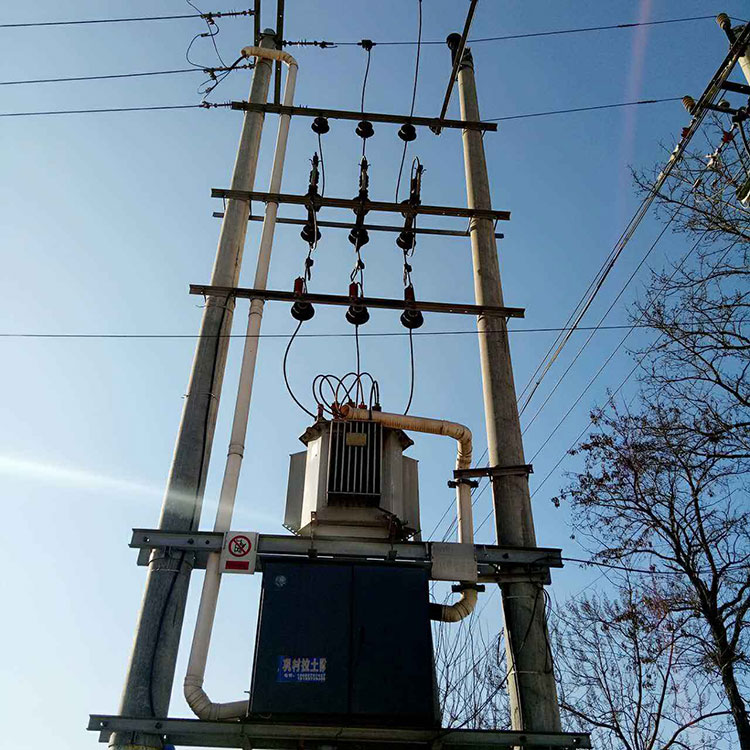

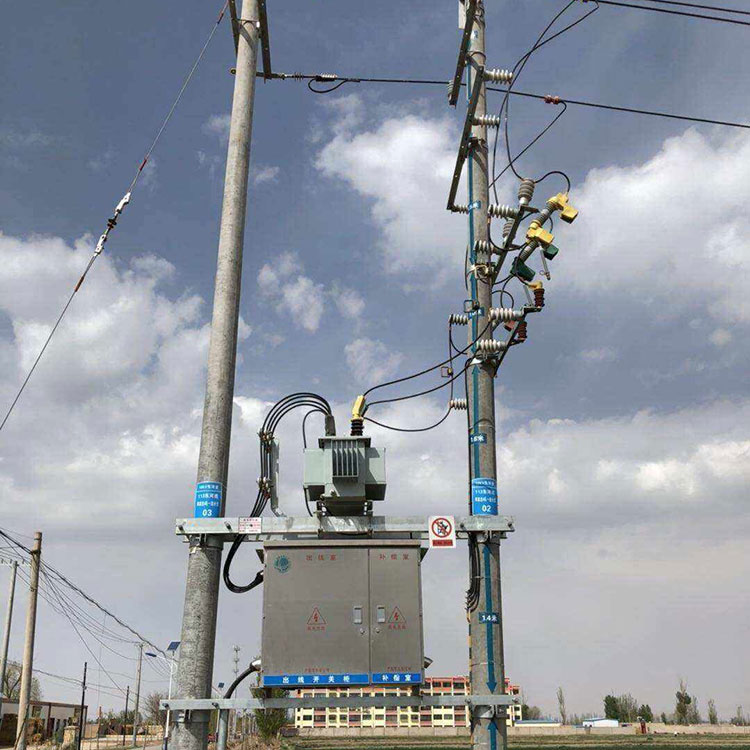

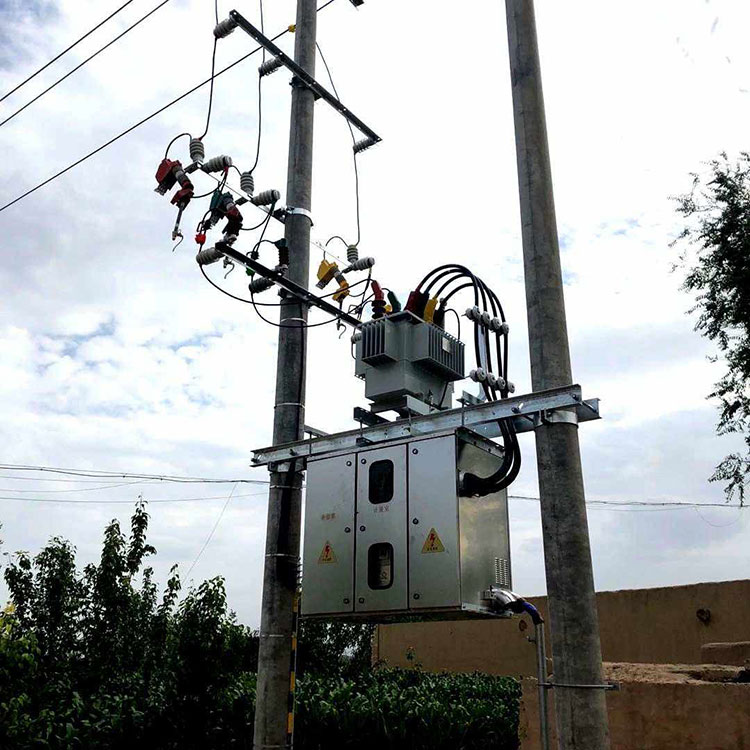

A 11kv 440v Pole Mounted Substations is a novel electrical integrated set with the transformer as its core component. It integrates low-voltage comprehensive distribution box (JP cabinet), fuses, lightning arresters, iron accessories, fittings, high and low-voltage wires, cables, and other accessories into a single combined unit. This equipment is characterized by its compact structure, rational layout, convenient construction, and operational advantages, making it widely used in urban and rural 11kV:0.4kV distribution networks, and it is currently one of the most extensively used facilities in 11kV:0.4kV distribution systems.

Application Features:

High cost-effectiveness, reducing power grid investment costs, and enhancing equipment investment efficiency.

High degree of integration, occupying a small footprint, with minimal design and installation difficulty.

Convenient operation and maintenance, including easy procedures for power shutdown and restoration.

11kv 440v Pole Mounted Substations Accessory List (400kva front mounted):

Material name	Specification and model	Unit	QTY (per Set)	Comments
Low voltage insulated wire	JKTRYJ-1/300	M	18
Laying wires	BV-35	M	15
Drop type lightning arrester	HY5WS-17/50 DL silicon rubber	set	1	Equipped with insulation cover
transformer	S13-M-400kVA 10/0.4kV Dyn11	piece	1
Terminal blocks	DT-35 IEC standard, hot tin plating Equipped with double nut gasket	set	21
Terminal blocks	DT-300 IEC standard, hot tin plating Equipped with double nut gasket	set	4
Terminal blocks	DTL-50 IEC standard, hot tin plating Equipped with double nut gasket	set	3
Insulated irregular parallel channel clamp copper	JBT-16/120	set	3	Equipped with insulation cover
Insulated grounding wire clamp	JDL-16/120 Lateral grounding of bias ring		3	Equipped with insulation cover
Post insulator	R5ET105L		12
Low voltage distribution box	JP-400kVA		1
High voltage insulated wire	JKLYJ-10/50	M	30
High voltage insulated wire	JKRYJ-10/35	M	18
Drop type fuse	RW13-12F/200A Porcelain insulation Each fuse is equipped with 2 piece of 40A fuses	set	3
High voltage wiring pile head	400kVA Transformer Primary voltage ABC phase Equipment clamp	set	3	For JKRYJ-10/35 Equipped with insulation cover
Low voltage wiring pile head	400kVA Transformer Secondary voltage abc phase Equipment clamp	set	3	For JKTRYJ-1/300 Equipped with insulation cover
Low voltage wiring pile head	400kVA Transformer Secondary voltage N phase Equipment clamp	set	1	For JKTRYJ-1/300 Equipped with insulation cover
Insulated irregular parallel channel clamp	JBL-16/120	set	6	Equipped with insulation cover
Low voltage insulated wire sheath	V-300	set	4	R,G,Y,B
Transformer and accessory installation bracket	ZX-400kVA 12 meter pole, front mounted	set	1	Hot Dip Galvanizing
