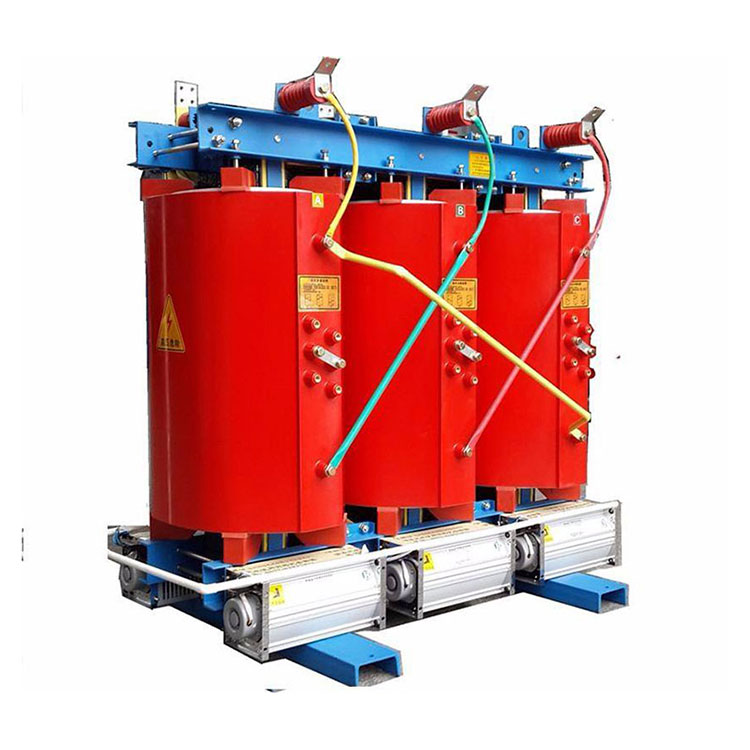

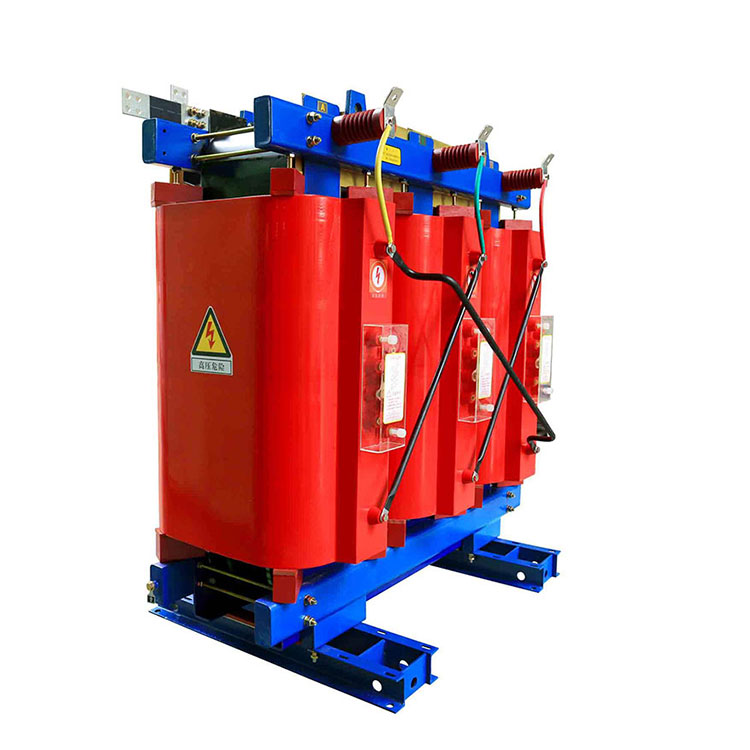

100 Kva Dry Type Transformer

Since our establishment in 2006, Conso Electrical Science and Technology Co., Ltd. has developed a professional electrical transformer and substation designing and producing team to assemble a 100 kVA dry type transformer in optimal efficiency with minimal energy usage. The company has several 100 kVA dry type transformer designing solution to survive from a uncertain material costs. IConso Electrical also take it in the first place that to offer 100 kVA dry type transformers with attractive pricing and controlled quality. We eagerly await your visit to our company to discuss and negotiate potential cooperation initiatives.

Send Inquiry

Product Description

Video

The 100 kVA dry type transformer strengths:

1.Low losses, excellent energy-saving performance, and cost-effective operation have contributed to economic benefits in development and operation.

2.Fire-resistant, explosion-proof, environmentally friendly, maintenance-free, and cost-saving when installed in high-load centers, reducing investment costs.

3.Localized discharge levels can be less than 10PC, coils remain moisture-free and dust-free, with high mechanical design strength and reliability.

4.Good short-circuit resistance and excellent lightning resistance.

5.The enclosure is made of three materials: stainless steel, aluminum cold plate, and can be designed with various cooling methods, including top air exhaust, hot air type, and entries at the bottom.

6.The transformer can be equipped with temperature control and temperature data display information systems as per user management requirements, and can be used in conjunction with a temperature control system.

The 100 kVA dry type transformer Product Parameter:

Rated Capacity:	100 kva,;
Mode:	SCB(10)-100 or depends;
No Loading Loss:	400±15% W or depends
Loading Loss:	1570±15% W or depends;
Phase Number:	three phase;
Tapping Method:	±2*2.5%, offloading tapping;
Cooling Method:	Air Nature/Air Forced;
Vector Group:	Dyn11 or Yyn0;
Enclosure Material:	aluminum alloy, stainless steel;
The Body Dimension:	900760940 (mm)
