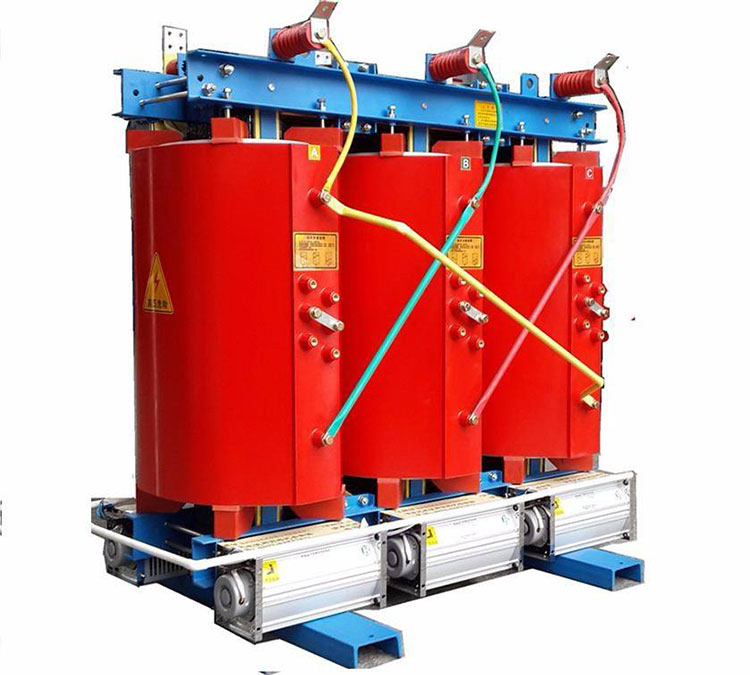

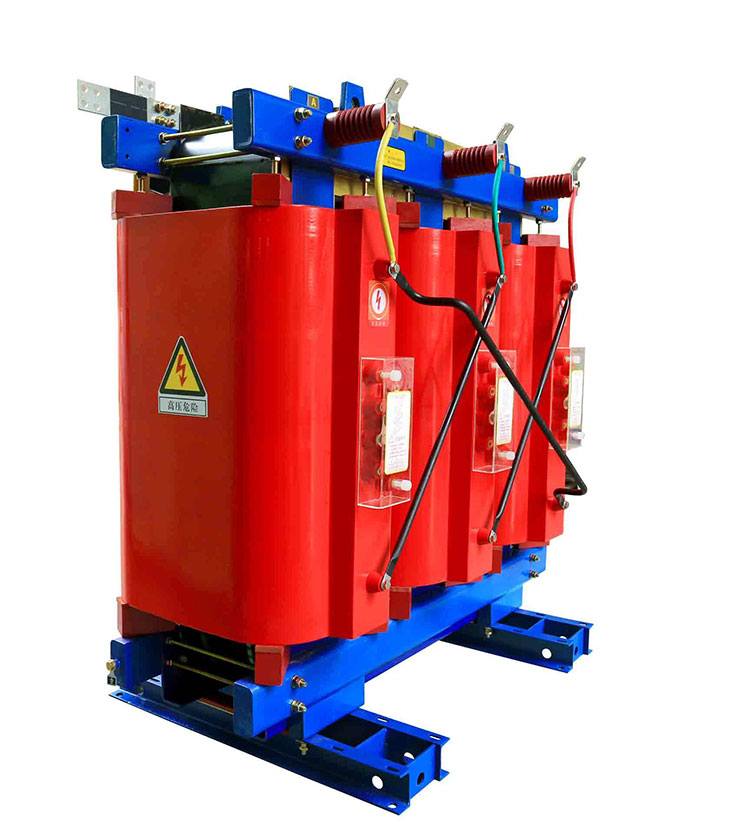

2500 Kva Indoor Dry Type Transformer

Conso Electrical Science and Technology Co., Ltd has been a specialized factory to manufacture 2500 kva indoor dry type transformer since 2006. In Conso Electrical, it takes distributing technical background more important than selling a 2500 kva indoor dry type transformer. Conso Electrical thinks a qualified 2500 kva indoor dry type transformer that can meet demands of terminal users. In most of cases, Conso Electrical designs and produces a 2500 kva indoor dry type transformer as the requirement of IEC 60076 and ISO 9001, respectively. However, the company will try to execute a higher standard, if the terminal users insist to.

Send Inquiry

Product Description

Video

The 2500 kva indoor dry type transformer Advantages:

The 2500 kva indoor dry type transformer is designed based on indoor usage. It needs more serious requirements on fireproof of insulation material. Obviously, an oil immersed transformer can not install in a supermarket or a hospital, because of the insulation material is flammable.

Meanwhile, a 2500 kva indoor dry type transformer does not need to change the insulation material regularly, because epoxy resin is one of the insulation materials that has the strongest insulation property. That is to say, a 2500 kva indoor dry type transformer keeps a lower maintenance costs than a oil immersed transformer. Ever more, the maintenance is more convenient than a oil immersed transformer.

Fortunately, it also because of the insulation material, 2500 kva indoor dry type transformer does not impacted by the changing of altitude and natural temperature.

Technical Value:

Rated Capacity:	2500 kva;
Mode:	SCB(10)-2500/20/0.4 or depends;
Primary Voltage:	20 kV, 22 kV, 24Kv;
Secondary Voltage:	0.4 kV, 0.415 kV, 0.433 kV;
No Loading Loss:	3870±15% W or depends
Loading Loss:	20000±15% W or depends;
Impedance:	8.0±10%;
No Loading Current:	≤ 0.7%;
Vector Group:	Dyn11/Yyn0;
Enclosure Material:	201 stainless steel/ Aluminum zinc clad plate;
