Our top-notch 11/13.8kV 3 Way RMU (Ring Main Unit) Panel is engineered to fulfill a wide range of applications with uncompromising quality. Should you require assistance, our online service is at your disposal for real-time support concerning the 11/13.8kV RMU Panel. Beyond the product list provided, we offer the flexibility to tailor a unique RMU Panel to your precise specifications. Trust us to deliver a solution that not only meets but exceeds your expectations in the realm of electrical power applications. Engage with us for a customized approach that seamlessly aligns with your specific needs for the 11/13.8kV 3 Way RMU Panel.

Video

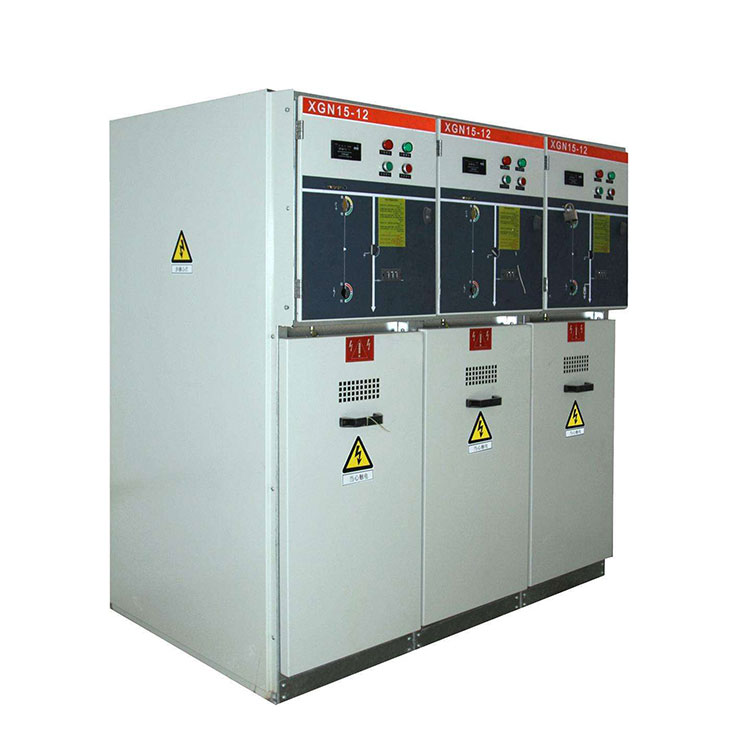

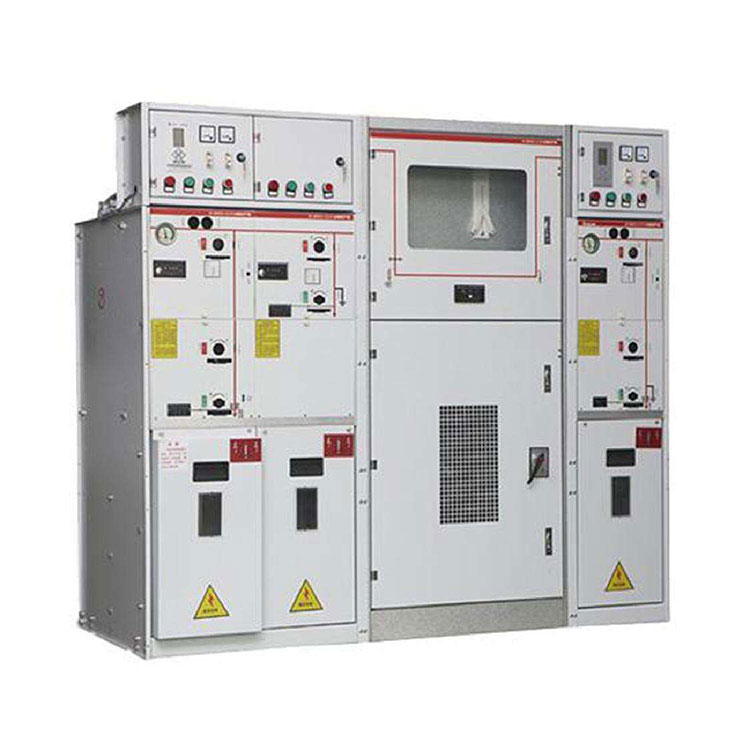

11 13.8 kv 11kv 3 way rmu panel ring main unit introduction：

(1) Strong Applicability

In China's western regions, where high altitudes, condensation, salt spray, and pollution have significant environmental impacts, there is a growing demand for highly reliable electrical distribution equipment in compact spaces, particularly in high-rise buildings, concentrated commercial and industrial areas, and rail transit construction projects. 11 13.8 kv 11kv 3 way rmu panel ring main unit (Compact Gas-Insulated Switchgear) has become the optimal choice. It is not affected by atmospheric conditions and its compact enclosure saves space, making it more harmonious and adaptable to the surrounding environment in terms of layout, size, and appearance. This results in significant overall economic benefits in construction projects. 11 13.8 kv 11kv 3 way rmu panel ring main unit has been selected for grid upgrade and capacity expansion projects in cities such as Kunming, Guiyang, and Chengdu, delivering excellent returns on investment.

(2) Excellent Installation Performance

11 13.8 kv 11kv 3 way rmu panel ring main unit comprises various high-voltage components organized into standard modules, which can be combined to meet various primary connection requirements and suit different applications. The entire system can be transported to the site, assembled and installed as a complete unit without the need for handling SF6 gas during installation. Furthermore, it can easily expand by adding more incoming and outgoing cable connections through pre-installed cable sockets or by extending the cabinets to one or both sides. High-voltage components are enclosed within gas-insulated compartments, allowing for easy cable entry and exit for power supply, as well as convenient connection and arrangement with transformers, unaffected by space constraints, and enabling easier system integration.

(3) Enhanced Safety Performance

The primary conductive parts of 11 13.8 kv 11kv 3 way rmu panel ring main unit are sealed within insulating gases like SF6, and high-voltage live conductors are enclosed. This design ensures high reliability and suitability for frequent operations, meeting the technical requirements for substations facing high rated current, high short-circuit breaking current, frequent switching, and low overvoltage conditions caused by rapid load changes. It can accurately receive and distribute electrical energy, implement effective control and protection, and provide precise detection. Users in Hangzhou, for example, have not reported any risks of electric shock or fire incidents while using 11 13.8 kv 11kv 3 way rmu panel ring main unit, ensuring the safety of equipment and operating personnel.

(4) High Maintenance Performance

11 13.8 kv 11kv 3 way rmu panel ring main unit uses gas-sealed or metal-sealed high-voltage components, which are corrosion-free and do not rust, leading to minimal maintenance requirements. The vacuum circuit breakers used in 11 13.8 kv 11kv 3 way rmu panel ring main unithave a long lifespan and stable performance, requiring little to no maintenance.

Meaning of a 11 13.8 kv 11kv 3 way rmu panel ring main unit

C: Cable Switch		F: Cable Switch with Fuse
De: Direct Cable Connection with Earthing		V: Vacuum Circuit Breaker
D: Direct Cable Connection		M: Metering Module(AIS)
Weight:	150kg for one cell (C, F, D, De, V)	Dimension	1336(H)*375(W)*751(D)
	250kg for a M cell		1636(H)*375(W)*751(D)

CONSO·CN 11 13.8 kv 11kv 3 way rmu panel ring main unit in Process:

The SF6 Single Cell

The SF6 Common Cell

The Metal Plate

The Complete Product

Outdoor Protective Cover

CONSO·CN 11 13.8 kv 11kv 3 way rmu panel ring main unit Workshop:

Welding area

SF6 cell assemble area

Daily Clean Up

11 13.8 kv 11kv 3 way rmu panel ring main unit in Assembling

11 13.8 kv 11kv 3 way rmu panel ring main unit Producing Equipment:
