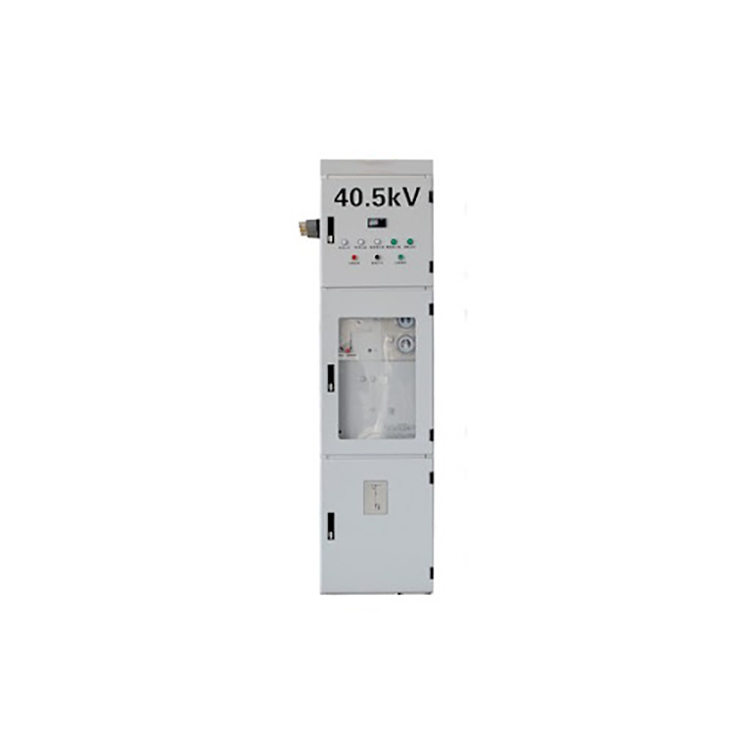

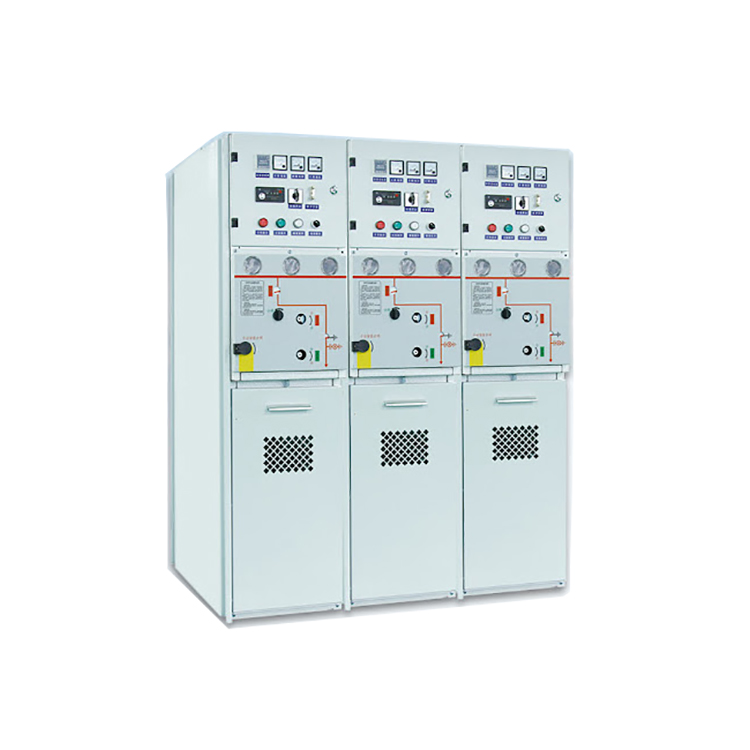

33 Kv 33kv 4 5 Way Rmu Ring Main Unit

The CONSO·CN high quality 33 Kv 33kv 4 5 Way Rmu Ring Main Unit unit widely used in the compact substation, due to the portable dimension. To meet the market demands, Conso Electrical Science and Technology Co., Ltd manufacture the 33 kv ring main unit adopted in the 33/0.4kv compact substation to achieve the competitive ability on the market. Generally, Conso Electrical produce 33kv ring main unit in a compact substation for oversea clients, such as Ethiopia. Thank you for your attention. We hope to personally showcase our company to you and discuss potential cooperation opportunities.

Send Inquiry

Product Description

Our superior 33kV 4-5 Way RMU (Ring Main Unit) is crafted to meet a multitude of applications, showcasing top-tier quality. Should you require assistance, our online service is at your disposal for timely and informative support regarding the 33kV RMU. Beyond the listed products, we offer the flexibility to customize a unique 33kV RMU tailored to your specific requirements. Entrust us with your needs, and let our expertise in the realm of electrical power ensure that your expectations are not just met but exceeded. Connect with us for a specialized solution that aligns seamlessly with your electrical infrastructure demands.

Video

33 kv 33kv 4 5 way rmu ring main unit Advantages：

Fully Sealed and Insulated Design: The CONSO·CN high quality 33 kv 33kv 4 5 way rmu ring main unit features all live parts sealed within a box made of 304 stainless steel, filled with SF6 gas at a working pressure of 1.4 bar, with an IP67 protection rating. It can be installed in damp and highly dust-contaminated areas, making it particularly suitable for mines, compact substations, and locations where air pollution can easily lead to surface flashovers. The product is equipped with cable connections conforming to DIN47636 standards, allowing cable connections through fully insulated, sealed, and shielded cable joints.

High Reliability and Personal Safety: All live parts are sealed within SF6 compartments, which have reliable pressure relief channels. The product has passed the internal fault arc-burning test at 25kA/0.5s. Load switches and grounding switches are three-position switches, simplifying interlocks between them. There is a reliable mechanical interlock between the cable compartment cover and the load switch to effectively prevent accidental entry into live spaces.

Maintenance-Free and Long Lifespan: The product is designed for a 30-year service life, during which the main switch requires no maintenance. The annual leakage rate of the product is ≤ 0.1%.

Compact Structure: Apart from the air-insulated metering cabinet and PT cabinet, the standard module has a width of 500mm. The cable connection sleeves for all units are at a consistent height from the ground, facilitating on-site construction.

33 kv 33kv 4 5 way rmu ring main unit can be equipped with an intelligent control device (optional), providing effective protection, remote control, and monitoring systems, and supporting the automation of the distribution system.

33 kv 33kv 4 5 way rmu ring main unit provides two protection methods for transformers: a load switch and fuse combination apparatus and a circuit breaker with relay protection. The load switch and fuse combination apparatus are used for transformers up to 1600kVA, while circuit breakers with relays can be used for the protection of transformers of various capacities.

Environmental Protection: The development of 33 kv 33kv 4 5 way rmu ring main unit not only considers the product itself but also encompasses environmental considerations from the production process to the product's lifetime operation. All materials are chosen to be environmentally friendly, adopting a zero-leakage clean process, with product lifetime sealing. After the product's end of life, 90% - 95% of the materials are recyclable.

Meaning of a 33 kv 33kv 4 5 way rmu ring main unit

C: Cable Switch	F: Cable Switch with Fuse
De: Direct Cable Connection with Earthing	V: Vacuum Circuit Breaker
D: Direct Cable Connection	M: Metering Module
Dimension: 500(W)1335(D)1600(H)
