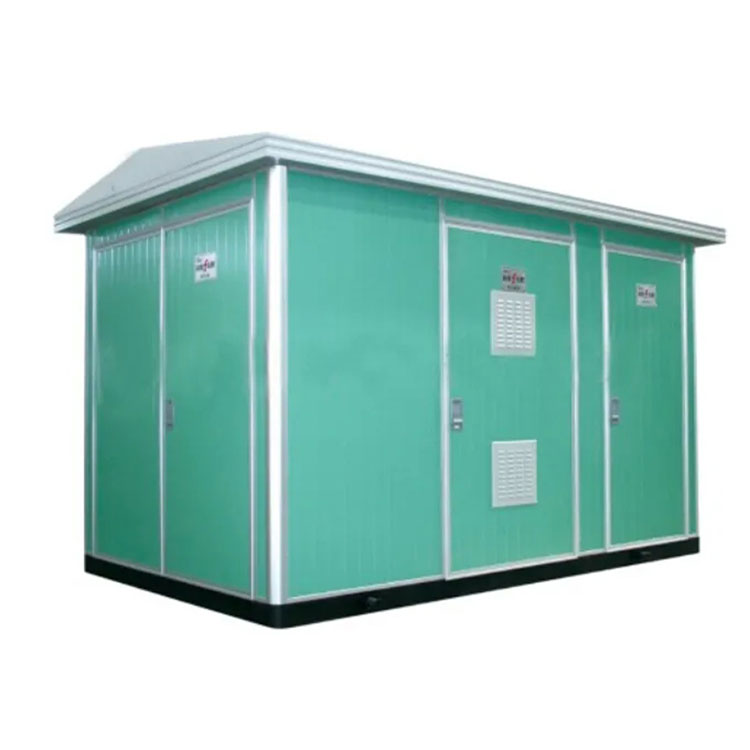

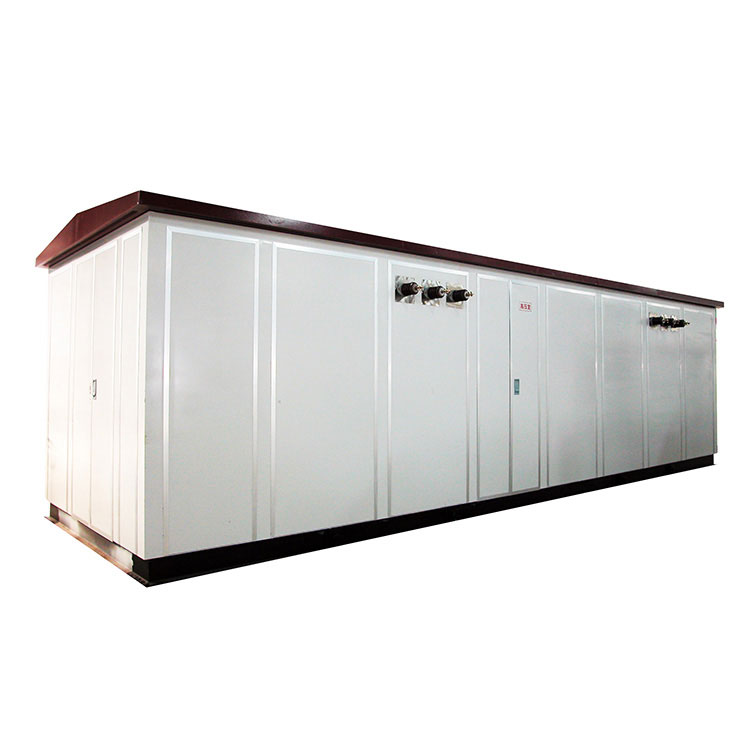

11kv Miniature Distribution Substation

To produce an excellent 11kv miniature distribution substation, Conso Electrical Science and Technology Co., Ltd has an experienced engineer team to design a compact substation as the specification of users. Since 2006, the company accumulated various solution of 11kv miniature distribution substation from the users of power plant, mining company, producing company and urban construction group corporation. As the execution of ISO 9001 and ISO 14001, Conso Elelctrical could produce more than 40 piece 11kv miniature distribution substation in 40 days.

Send Inquiry

Product Description

Conso, a distinguished Chinese manufacturer, proudly presents the superior 11kV Miniature Distribution Substation. Directly acquire this high-quality product from us at a cost-effective price. Our commitment to excellence in the field of electrical power is exemplified by the premium standards of the 11kV Miniature Distribution Substation. Make a direct purchase to experience the quality and reliability that Conso consistently delivers in the domain of miniature distribution substations. Your satisfaction is our priority as we ensure the seamless integration of robust and compact solutions into your power infrastructure.

Video

11kv miniature distribution substation Introduction：

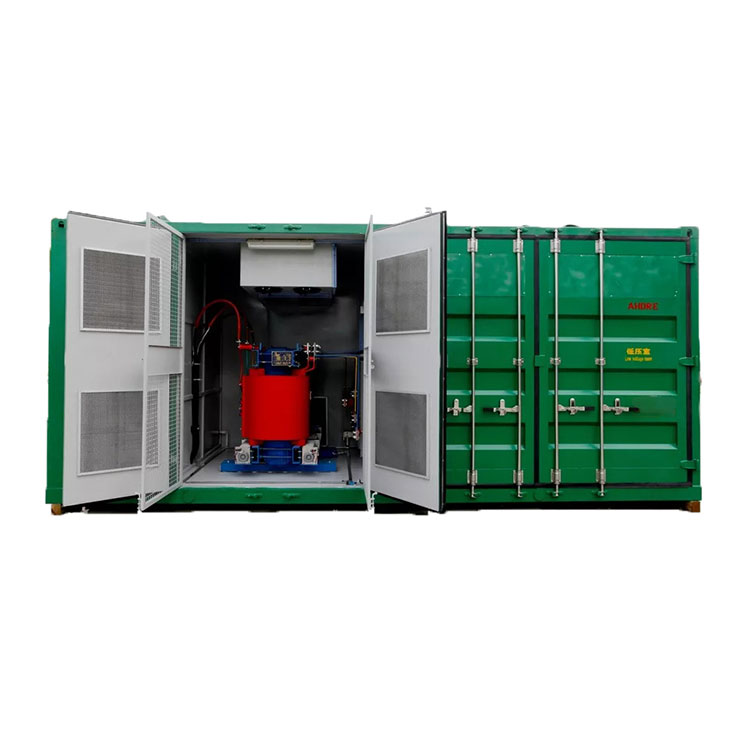

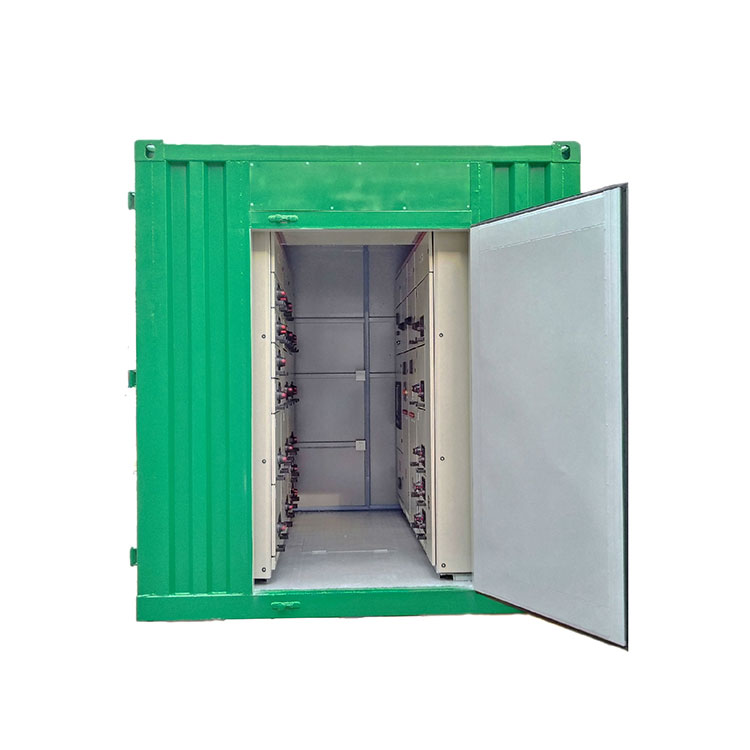

A box-type substation, commonly referred to as a "box substation," is a compact factory-made electrical distribution equipment that combines high-voltage switchgear, distribution transformers, and low-voltage distribution devices in a single unit according to a specific wiring scheme. It is designed for both indoor and outdoor use and is characterized by its moisture-proof, rust-resistant, dust-proof, rodent-proof, fire-resistant, theft-resistant, and insulated steel structure enclosure. This electromechanical integration operates in a fully enclosed manner and is particularly suitable for urban grid construction and renovation. It represents a new generation of substations that has emerged after conventional brick-and-mortar substations.

The enclosure of a European-style substation consists of three parts: the base, the outer shell, and the top cover. The base is typically made from channel steel, angle steel, flat steel, steel plates, and is either welded or bolted to form a secure foundation. To facilitate ventilation, heat dissipation, and the entry and exit of cables, it should have rectangular and appropriately sized circular openings in the corresponding locations. The enclosure's outer shell and top cover are created by bending and welding channel steel, angle steel, steel plates, aluminum alloy plates, color-coated steel plates, cement boards, or similar materials, or by connecting them using screws, hinges, or relevant specialized attachments.
