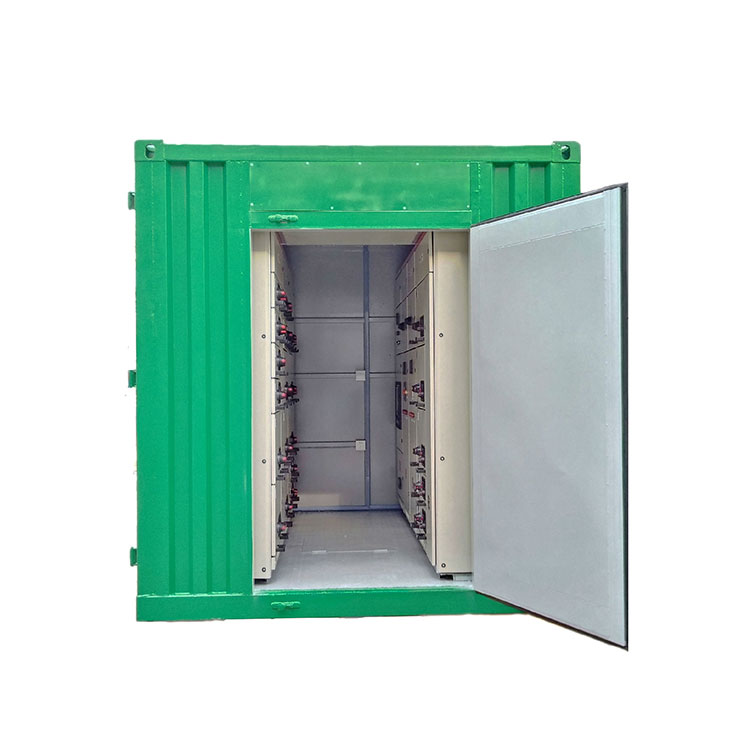

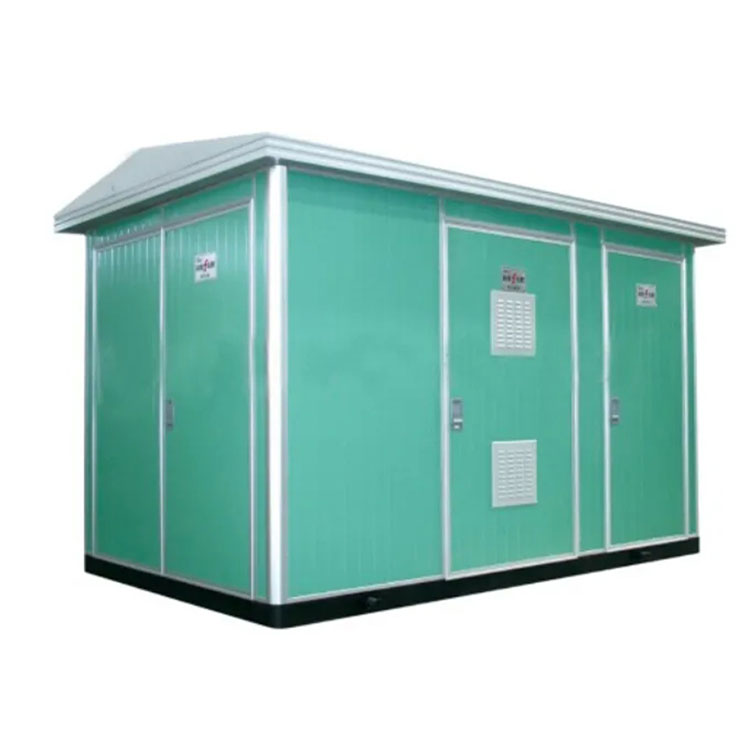

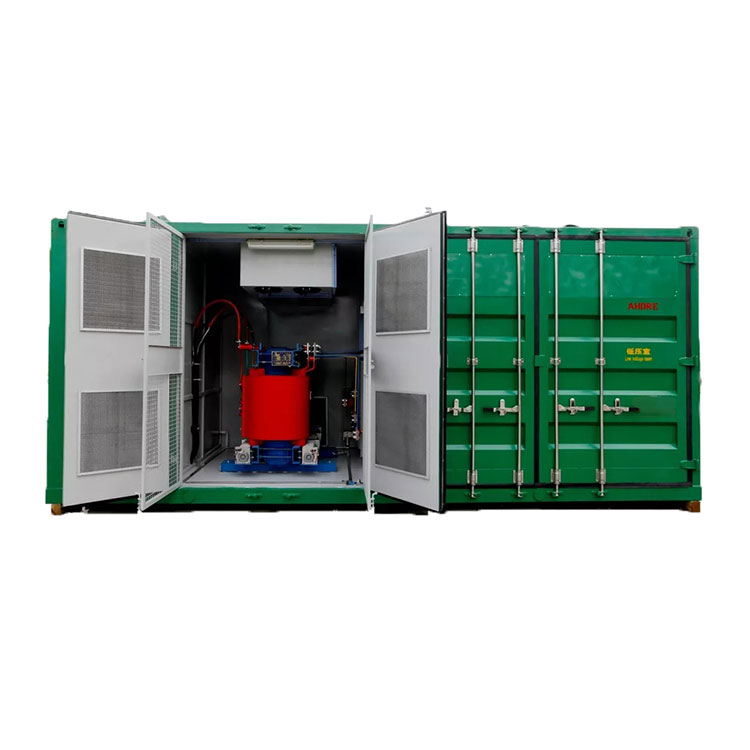

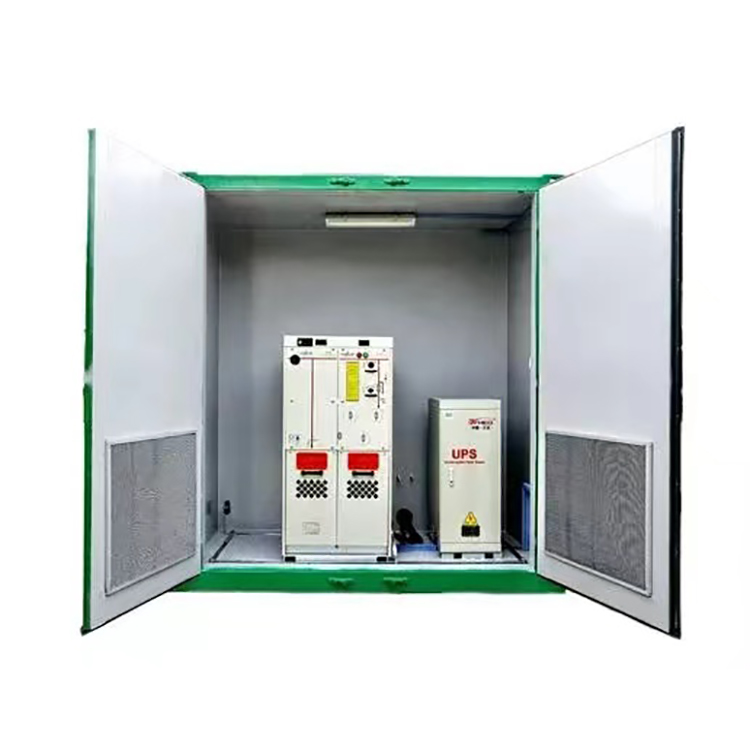

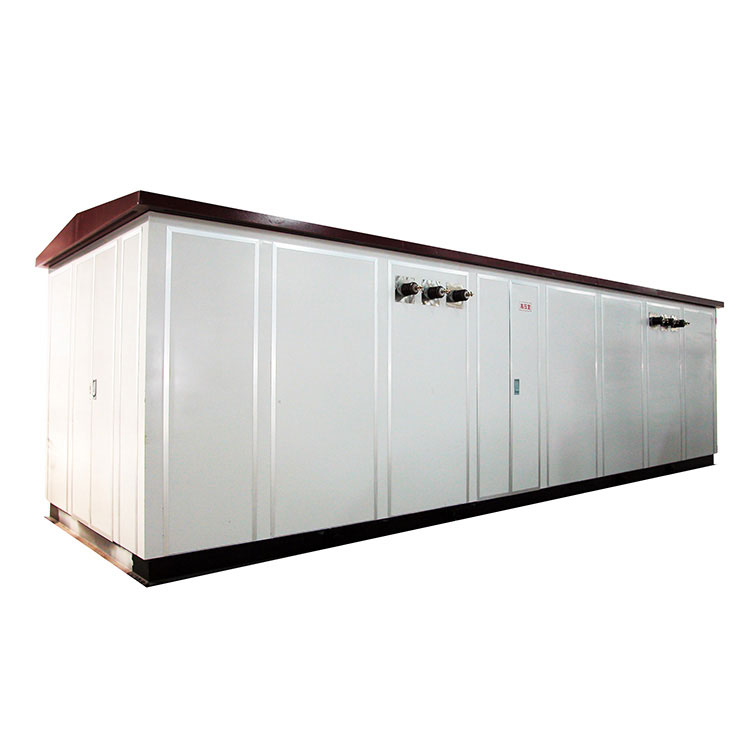

22 Kv Residential Electrical Substation

22 Kv Residential Electrical Substation has a longer conveying radius and larger coverage area. Conso Electrical Science and Technology Co., Ltd aims to manufacture a compact substation as the customized from requirement of users. The company also produce distribution transformers and vacuum circuit breaker to increase the ability of controlling costs. For the incoming materials of compact substation, the company has a well established quality control system to inspect each components. We look forward to your visit for in-depth discussions on potential cooperation opportunities.

Send Inquiry

Product Description

Conso stands as an esteemed leader in China, recognized as a manufacturer specializing in 22 kV Residential Electrical Substations. Our commitment to delivering products of uncompromised quality at competitive prices sets us apart. Feel free to reach out to us for any inquiries or further information. With a focus on excellence in the realm of electrical power, we ensure that our solutions not only meet but exceed industry standards. Your contact is valued, as we strive to address your specific residential electrical substation needs with precision and expertise.

Video

22 kv residential electrical substation Introduction：

1. Compact Structure, Small Footprint

The 22 kv residential electrical substation is a closed structure composed of several 22 kv residential electrical substations and transformer terminal outlets. Each electrical room is connected by a support-fixed frame, and the electrical room chambers are connected with bolts or other means to form a sealed whole. This 22 kv residential electrical substation is a closed integrated structure that is environmentally friendly and allows for on-site installation and maintenance. It also offers strong safety and reliability.

During operation, the electrical room is connected to form a sealed integrated structure using bolts or other means, enabling on-site maintenance and servicing. It has a small footprint, a compact structure, an elegant appearance, and is easy to transport and install. It is particularly suitable for use as the main transformer of 20 kV substations in central urban areas, residential areas, and along roads in city centers. It can also serve as a power supply equipment for urban neighborhoods and rural areas' power grid upgrades.

2. Good Sealing, Reliable Operation

The 22 kv residential electrical substation enclosure features a fully sealed structure to ensure safe and reliable operation.

(1) The compact substation's incoming cabinet, outgoing cabinet, and the transformer body are equipped with electrical operating mechanisms for changing voltage levels and directions. The enclosure also features incoming and outgoing line disconnect switches and isolating voltage transformers.

(2) The 22 kv residential electrical substation's interior is equipped with circuit breakers, knife switches, disconnect switches, fuses, and other electrical control and protection devices, and it can be connected to busbars. This reduces the occurrence of accidents and enhances operational reliability.

(3) The 22 kv residential electrical substation enclosure is made of fiberglass composite panels, which provide impact resistance and are equipped with a fire-resistant cover to isolate the source of fire in the event of a fire.

(4) The enclosure and electrical components of the 22 kv residential electrical substation are coated with anti-corrosion or insulating paint, providing rust and insulation protection. Additionally, the 22 kv residential electrical substation is equipped with lightning arresters, voltage transformers, and other protective devices.

3. Excellent Safety and Explosion-Proof Performance

The 22 kv residential electrical substation enclosure is manufactured in strict compliance with explosion-proof requirements in the factory. It is designed and manufactured with a full-sealing structure, featuring three layers of sealing: air-tight, water-tight, and oil-tight. Since the interior of the 22 kv residential electrical substation is oil-immersed for insulation, in the event of a short-circuit fault inside the substation, the oil level automatically returns to its original height. Therefore, when a short-circuit fault occurs inside the 22 kv residential electrical substation, the enclosure does not break due to the short-circuit, preventing the generation of flames and explosive gases.
