315 500 630 kva electrical mini substation is an ideal solution that could be installed in areas with relatively concentrated loads in the power system, such as commercial building, residential area. Conso Electrical Science and Technology Co., Ltd has more than 15 years’ experience to assemble 315 500 630 kva electrical mini substation. Conso Electrical takes cost performance in the first place. The material and components adopted on compact substation will meet the requirement of clients. We also have the business experience with clients from Africa, southeastern Asia and the middle east Asia
1. The factory production of the transformer substation can shorten the construction period and reduce the cost.
2. Go deep into the load center to the maximum extent, which can improve the quality of power supply and reduce line loss.
3. High-voltage chamber, low-voltage chamber and transformer chamber are all in one, with small space occupation.
4. There are various styles in appearance. It is perfect in shape and function and can be coordinated with the surrounding environment.
5. The brand-new internal structure realizes the organic unity of saving materials and improving performance, with comfortable operation and convenient maintenance.
6. It adopts the redundancy design, and the secondary standby interval is reserved for the low-voltage part to facilitate the power supply department to install additional power monitoring equipment (for example: remote meter reading device, load control device, comprehensive test instrument of distribution transformer, etc.).
7. The full-assembly design shell, equipped with a brand-new shell, coating process, can guarantee five years of color fastness and ten years of corrosion resistance.
8. Flexible and diverse scheme selection, which can meet various needs of users.
Rated Voltage Ratio: | 33/0.4 kV, 10/0.4 kV, 15/0.415 kV, 22/0.4 kV; |
Transformer Type: | Cast resin dry type or Oil immersed Type; |
Enclosure Material: | Container, Cold rolled steel plate,composite plate; |
Protection Rate: | IP43; |
Capacitance Compensation Capacity: | 20% to 30% of the transformer capacity; |
Wind speed: | not exceeding 35m/s. |

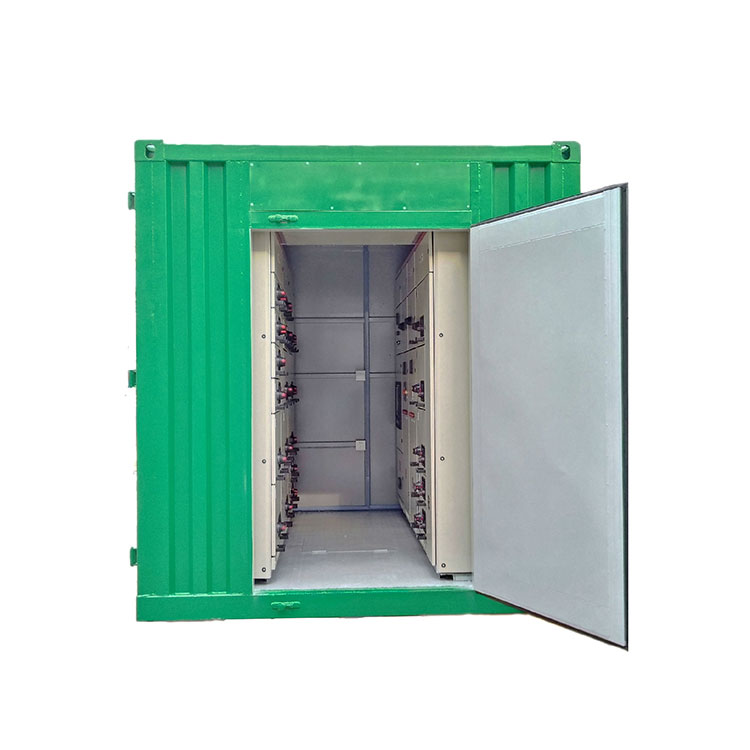

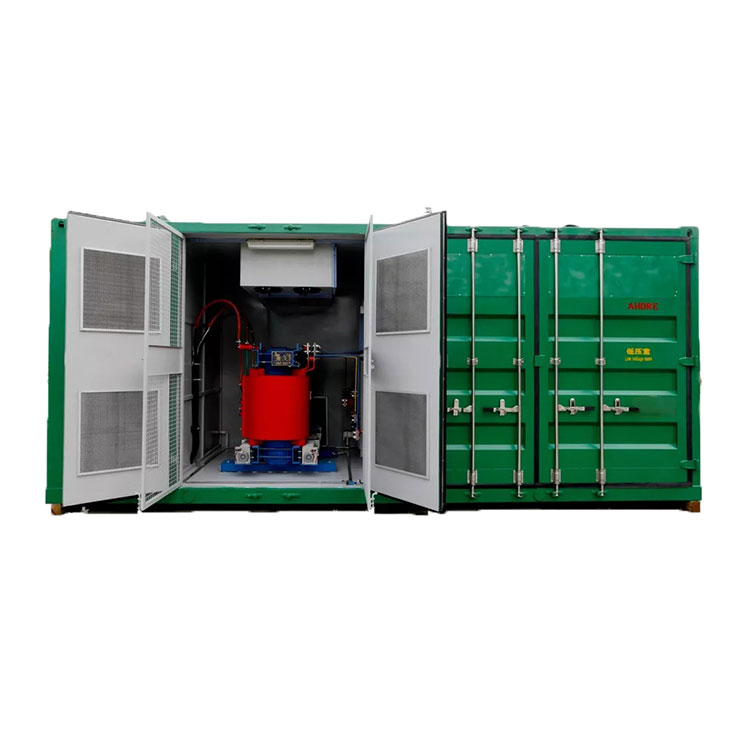

Container Shell
|

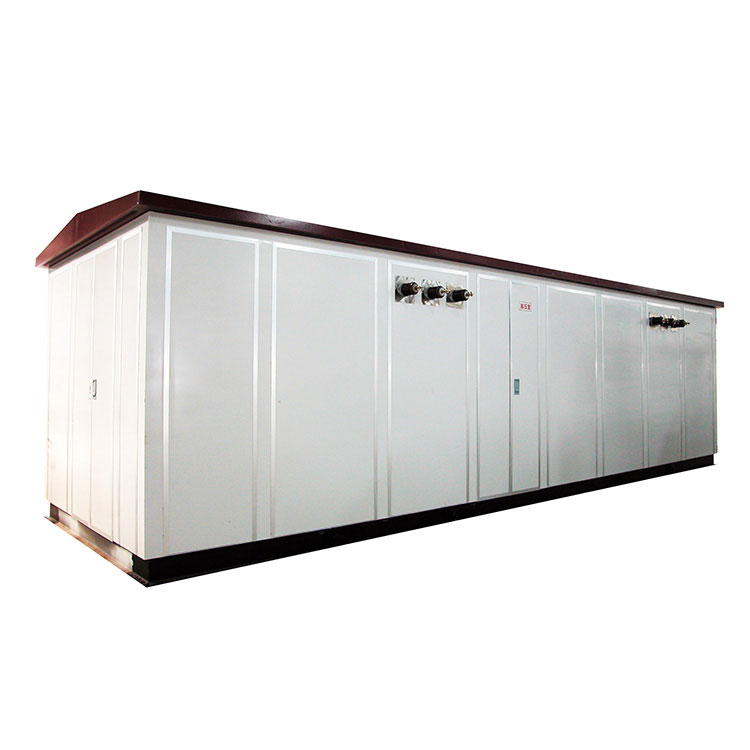

Steel Shell
|

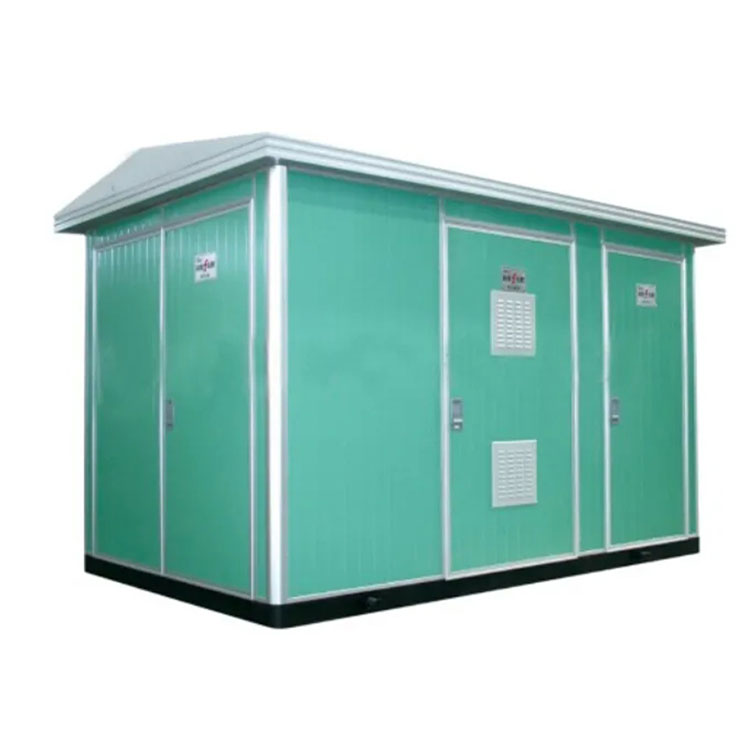

Laminate Shell
|
Compact Shell in Process |
Switchgear is Testing |
Daily Clean Up |
Workshop Overview |
KYN28 in Process |
HXGN12 in Process |
GCS in Process |
GIS in process |
Switchgear Assembled with the Shell
