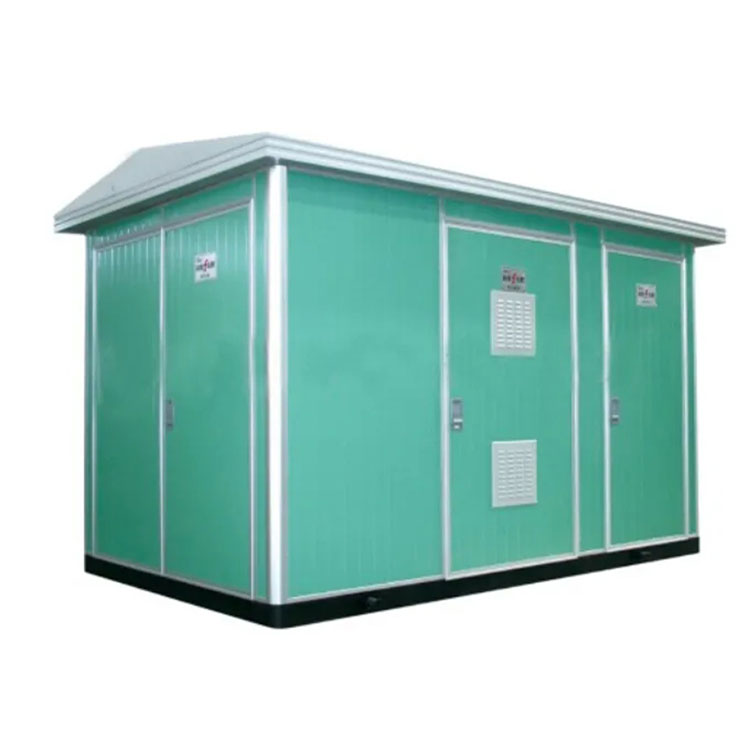

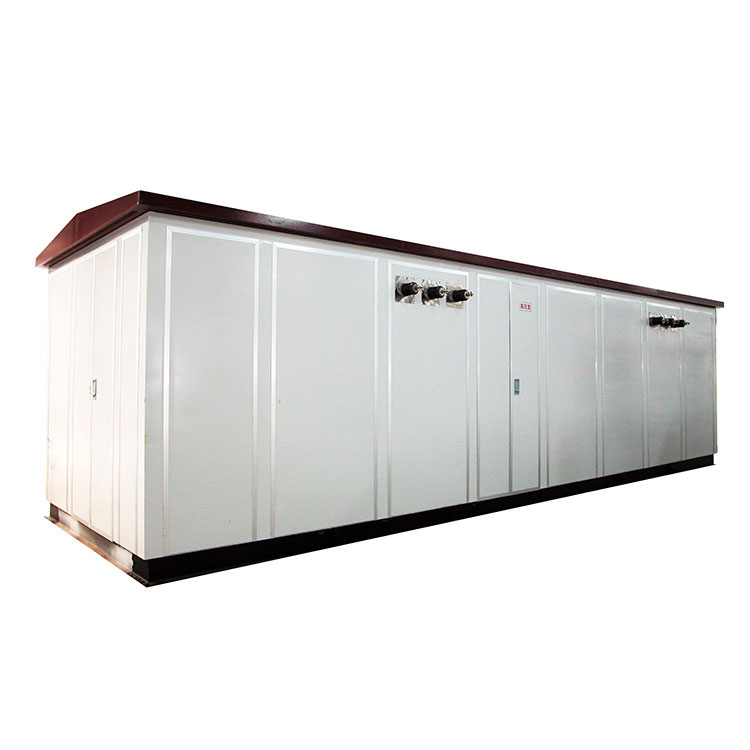

33 6.6 Kv 100 Kva Small Modular Substation

33 6.6 kv 100 kva small modular substation is one of the optimal solution for urban and rural electricity consumption, especially support electricity supply to public lighting system HVAC systems, and elevators. Conso Electrical Science and Technology Co., Ltd is one of the experienced manufacturing company to make 33 6.6 kv 100 kva small modular substation. Conso Electrical support full size customize service for 33 6.6 kv 100 kva small modular substations. The company believes a stable cooperation is based on supplying suitable and reliable compact substations to terminal users. Each of 33 6.6 kv 100 kva small modular substations need to finish factory tests before delivering.

Send Inquiry

Product Description

Video

33 6.6 kv 100 kva small modular substation Introduction：

The 33 6.6 kv 100 kva small modular substation is a new type of complete equipment capable of serving as both power reception and distribution deep within load centers. Its application has only just begun in China. It is adapting to the direction of the development of power system transmission and transformation equipment towards oil free, miniaturization, low loss, low noise, complete set, pollution free, and maintenance free. With its advantages of compact designing, convenient and rapid installation, reliable operation, easy mobility, and low investment, it is increasingly trusted and recognized by users and is being widely applied.

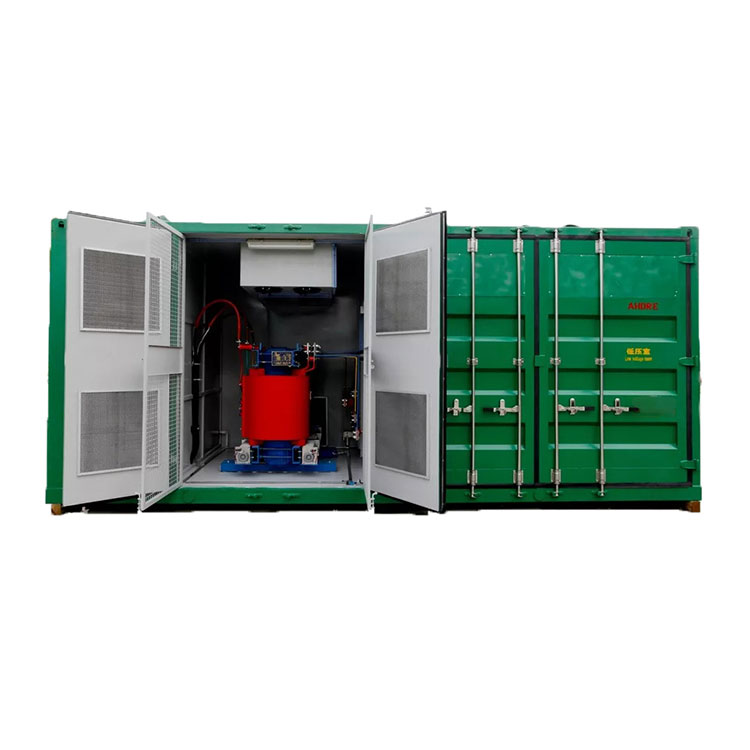

The 33 6.6 kv 100 kva small modular substation consists of high voltage switchgear, transformers, low voltage switchgear, and power compensation devices compactly housed in one or several enclosures to form a complete set of power distribution equipment. It is mainly used to replace traditional civil type substations and achieve power transformation and distribution functions. Currently, it is mainly used for users in 3 kV to 35 kV distribution systems. High voltage lines enter the 33 6.6 kv 100 kva small modular substation, pass through high voltage switches, are transformed into low voltage by transformers, and then pass through low voltage main switches and branch switches to reach the terminal electrical equipment.

33 6.6 kv 100 kva small modular substation Technical Parameter：

Transformer Capacity:	100 kVA ;
Cooling System:	AN/AF;
Primary Max. Working Voltage:	12 kV or 40.5 kV;
Secondary Max. Working Voltage:	0.4 kV;
Rated Frequency:	50 Hz or 60 Hz;
Capacitance compensation capacity:	20% to 30%;
Protection Level:	up to IP54;
Working Temperature:	-40 ℃ to 40 ℃;
Relative Humidity:	no exceed to 95% in daily and 90% in monthly;

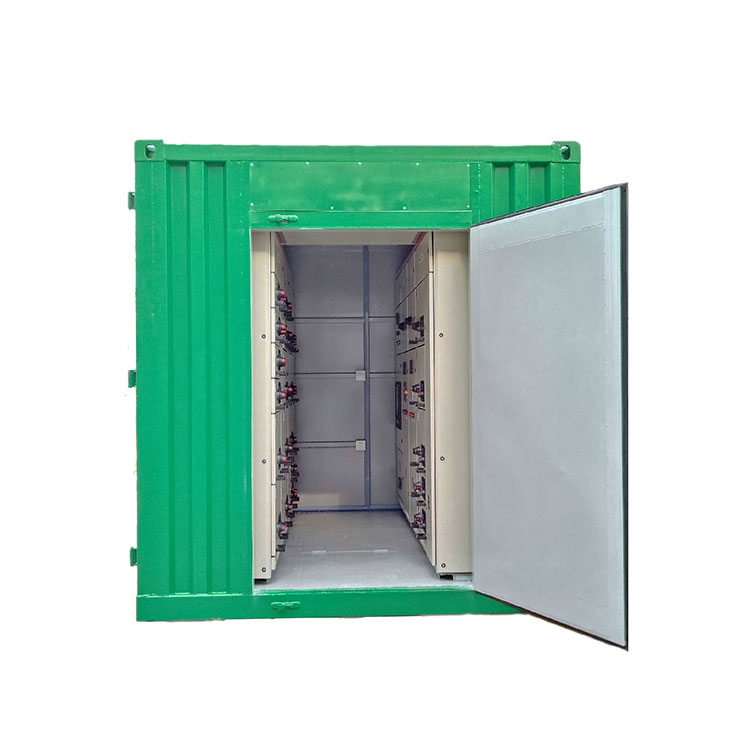

Enclosure Type:	Container Shell; Steel Plate Shell, Laminate Shell.
