50kva single phase transformer is one of the most common modes to marker demand. Conso Electrical Technology and Science Co., Ltd., has been a manufacturing company since 2006, aims to provide more possible on customized orders of pole mounted transformers. To fit the variance demand on temperature rise and transformer efficiency, conso electrical has an expert engineer team to design solution of a 50kva single phase transformer as the less cost consuming as possible. We have the clients from state grid corporation of china and other power gird company from other country. We wish you would join us to have business cooperation.
(1) Electrical units installing standby 14.4 kv 50kva single phase transformers should prioritize the operation of energy-efficient 14.4 kv 50kva single phase transformers with lower power loss rates.
(2) For electrical units with multiple 14.4 kv single phase transformers operating in parallel, following load variation patterns is advisable. Optimize the best combination of 14.4 kv single phase transformers within a reasonable load range, switching transformers as necessary to minimize overall losses.
(3) Under safe, economic, and reasonable conditions, optimize the selection of the economic total capacity of transformers. Compare the cost savings from increasing transformer capacity with the investment in additional capacity, calculate the payback period for investment returns, and analyze the economic benefits at different nodes to select the economically efficient transformer capacity.
(4) Under a comprehensive technical and economic analysis, consider replacing or retrofitting transformers to achieve economical transformer operation. Gradually phase out older, high-energy consumption transformers, reducing grid losses.
Rated Capacity: | 50 kVA; |
Mode: | D11-M-50 or depends; |
Primary Voltage: | 14400 V or depends ; |
Secondary voltage: | 220V, 433V, 380V,or depends; |
No Loading Loss: | 135 W ±10%; |
Loading Loss: | 500 W ±10%; |
Phase Number: | Single Phase; |
Rated Frequency: | 50 or 60Hz; |
Power Frequency withstand Voltage: | 38kV; |
Lighting Impulse withstand Voltage: | 95kV. |

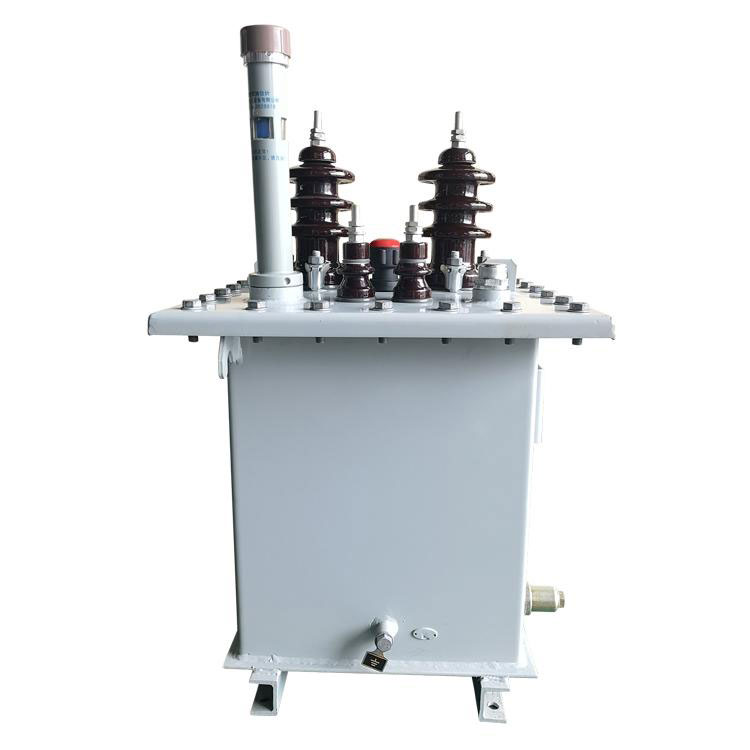

Front Mounted
|

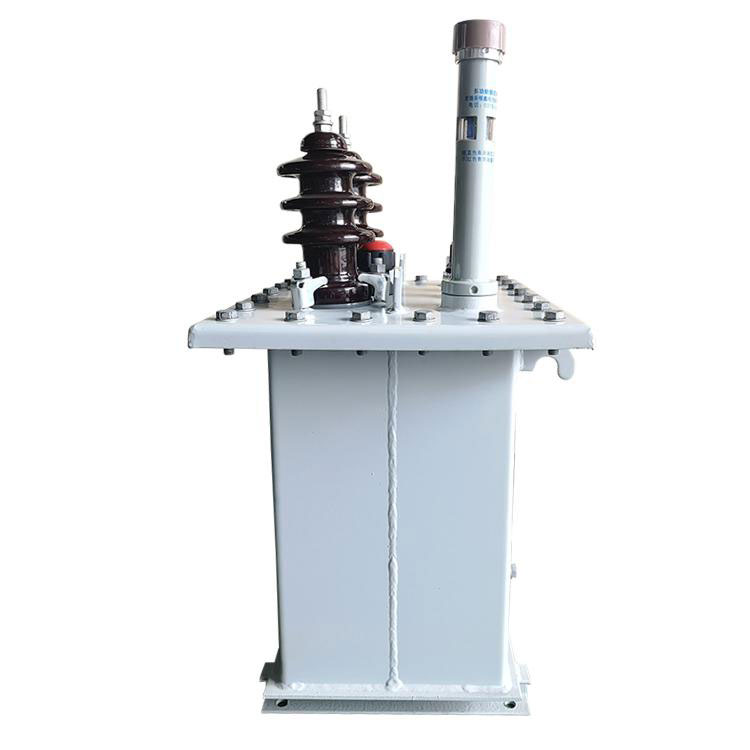

Side Mounted
|
Single Phase Transformer
|
Single Pole Mounted
|
Winding Workshop |
Coil Drying Area |
Oil Filling Area |
Finished Product Area |
Transformer Oven |
Casting Equipment |
Foil winding machine |
Wooden Box |
Steel Structure |
