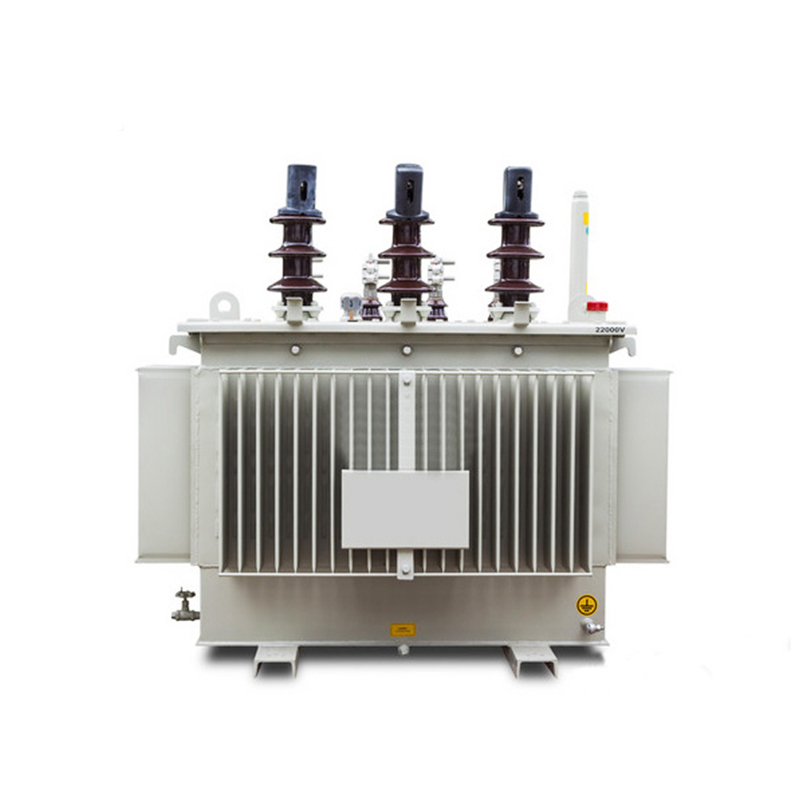

22 Kv 200 Kva 3 Phase Utility Transformer

Conso Electrical Science and Technology Co., Ltd. is established in 2006 to produce 10kv to 35kv electrical transformers and prefabricated substations, such as a 22 kV 200 kVA 3 phase utility transformer. The company is located in the central industry park of Yueqing City Zhejiang Province China, which has about 12000 m2 manufacturing workshop to assemble 22 kV 200 kVA 3 phase utility transformers by lots. To offer an unbeatable price, the company engineer a electrical transformer adopt with the current material price. Our aspiration is to build a solid and cooperative bond as we serve you.

Send Inquiry

Product Description

Video

The 22 kV 200 kVA 3 phase utility transformer Key advantages:

1.Multiple Circuits, High Reliability, Low Losses: When transmitting the same power with equivalent conductors, compared to a 10kV 200 kVA 3 phase utility transformer, a 22 kV 200 kVA 3 phase utility transformer extends the supply radius by 60%, expands the coverage by 1.5 times, and increases the power transmission capacity by a factor of 1, while reducing transmission losses by 75%.

2.Cost-Effective and Economical: Implementing a 20kV distribution network for power supply can result in reduced investments and land requirements for larger capacity customers. It offers an optimized power supply solution, while operating and maintenance costs remain largely comparable to those of 10kV systems.

3.Enhanced Power Delivery Capability, Wider Coverage: The power delivery capability of a 22 kV 200 kVA 3 phase utility transformer is approximately twice that of a 10kV 200 kVA 3 phase utility transformer, and the coverage area is about 2.5 times larger.

4.Long-Distance Transmission: There is significant untapped potential for supplying power to remote rural areas. Using a 20kV long-distance power supply approach can reduce losses, alleviate issues related to excessive voltage, and take advantage of long-distance transmission capabilities in low load density regions.

The 22 kV 200 kVA 3 phase utility transformer Technical Data:

Rated Capacity:	200 kVA;
Mode:	S11-M-200/22 or depends;
Primary Voltage:	22kV ;
No Loading Loss:	330±10% W;
Loading Loss:	2860±10% W;
Phase Number:	Three phase;
Cooling Method:	ONAN;
Vector Group:	Dyn11; Yyn0;
Basic Insulation Level:	50kV/125kV(LI/AC);
Impedance:	5%±10%;
Temperature Rise(oil top/winding average):	60K/65K or as clients requirements;
