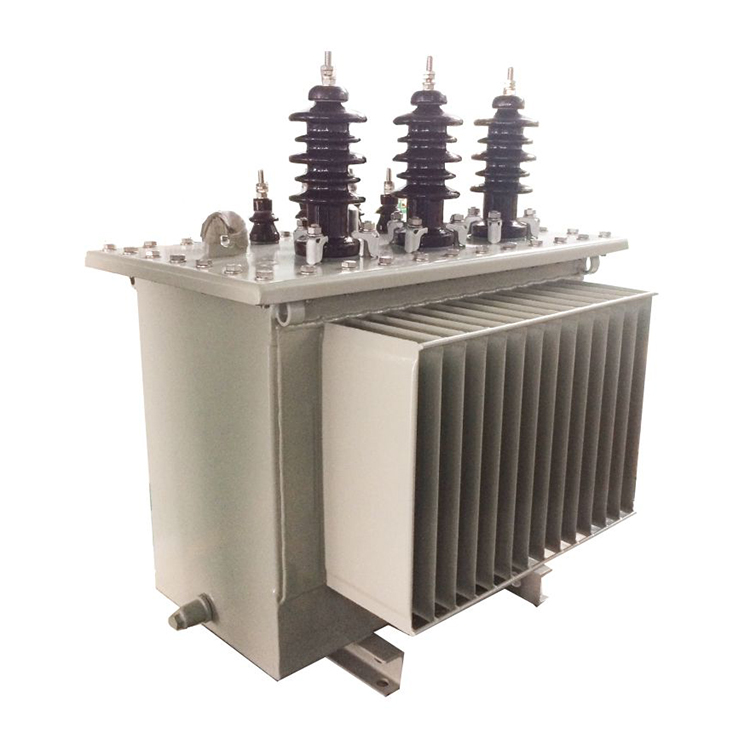

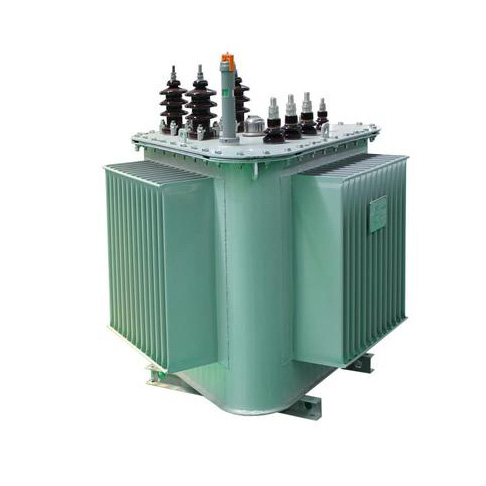

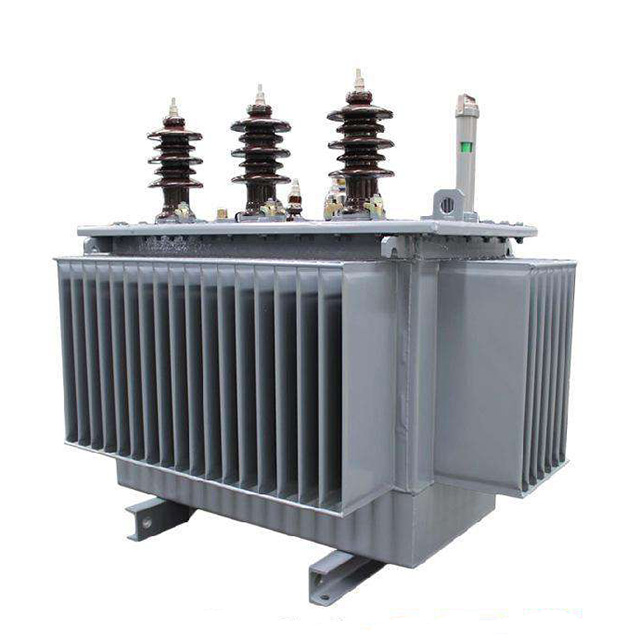

63 Kva 3 Phase 11 0.433 Kv Distribution Transformer

Conso Electrical Science and Technology Co., Ltd is a production firm to assemble 10kv to 35kv distribution transformers and pad mounted transformers, such as 63 kva 3 phase 11 0.433 kv distribution transformers. The company has participated the government tender as a candidate since 2006. it has about 12000 m2 manufacturing plant to provide 63 kva 3 phase 11 0.433 kv distribution transformers to power gird corporation. Conso Electrical owns a experienced technical team to design 63 kva 3 phase 11 0.433 kv distribution transformers as current material prices. We are enthusiastic about the prospect of your visit to our company for cooperation project discussions.

Send Inquiry

Product Description

Video

The 63 kva 3 phase 11 0.433 kv distribution transformer Strengths:

1.The transformer core is constructed by stacking high-quality imported cold-rolled silicon steel sheets, significantly reducing no-load losses and no-load current. The core is also securely bound to ensure tightness and reduce noise.

2.The high and low voltage windings are wound with oxygen-free copper. Low voltage windings up to 500KVA adopt a double-layer cylindrical structure, while those above 630KVA use a double or quadruple helical structure. High voltage windings are designed in a multi-layer cylindrical configuration.

3.The transformer's connection group is set as Dyn11 to reduce the impact of harmonics on the power grid and enhance power quality.

4.The transformer features a fully sealed design, extending its lifespan and eliminating the need for core suspension or maintenance.

5.Measured noise levels are below the standard requirements.

The 63 kva 3 phase 11 0.433 kv distribution transformer Technical Data:

Mode:	S11-M-63 or depends;
Rated Capacity:	63 kVA;
Primary Voltage:	11kV or depends;
Secondary Voltage:	400V, 433V;
No Loading Loss:	140卤 10%W;
Loading Loss:	1040/1090卤 10%W;
Cooling method:	ONAN for Oil immersed, ANAF for cast resin;
Insulation Material:	25# 45# Mineral Oil or epoxy resin;
Vector Group:	Dyn11, Yyn0;
Tapping Method:	卤2*2.5%, offline;
