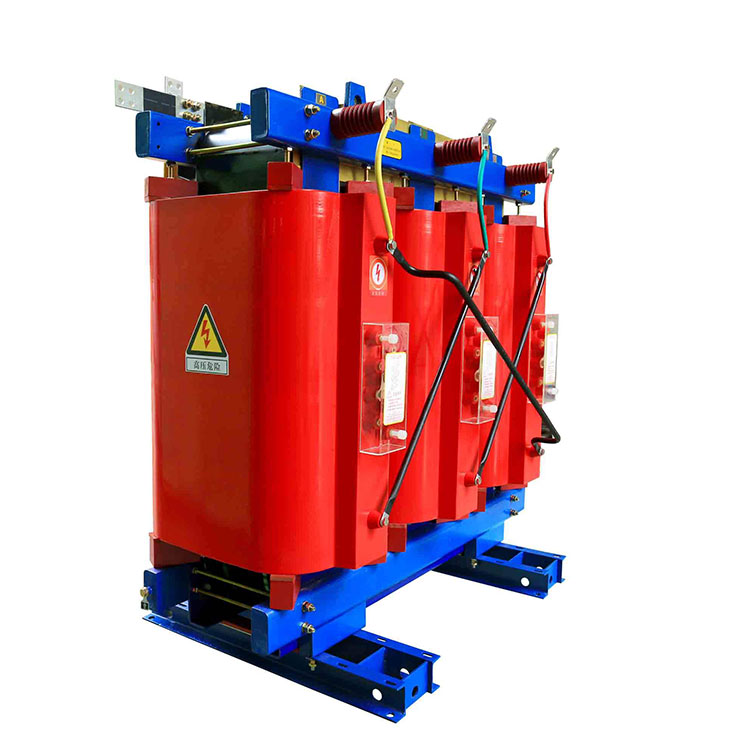

Dry Type Transformer Insulation Class H

Conso Electrical Science and Technology Co., Ltd is a respected manufacturing firm dedicated to create high quality dry type transformers with insulation class H. The company have concentrated on manufacturing Dry Type Transformer Insulation Class H dry type distribution transformers for 15 years when established. Our approach to creating dry type transformers with insulation class H keep an eye on the core principles of Matching quality to industry standards at a budget friendly price point. We take great pride in building enduring and sustainable partnerships with our valued clients.

Send Inquiry

Product Description

Video

Dry Type Transformer Insulation Class H Introduction


Oil Immersed Distribution Transformer	Amporphous Alloy Oil Filed Distribution Tansformer	Single Phase ONAN Distrinution Tansformer	33/0.4V ONAN Power Tansformer

Cast Resin Dry Type Distribution Transformer	Non Encapsulated Dry Type Distribution Tansformer	Amorphous Alloy Dry Type Distribution Tansformer	33/10kV ONAN Power Distribution Tansformer

Class H dry type transformer insulation is designed to withstand high temperatures and provide exceptional thermal stability. This insulation class offers superior resistance to heat, making it suitable for demanding industrial and commercial applications where reliable electrical performance in harsh conditions is essential.

Technical Value:

Rated Capacity:	as IEC 60076;
Primary Voltage:	10kV 15kV 22kV or 35kV;
Secondary voltage:	220V or 400V;
Cooling System:	Air Natural or Air Forced;
Insulation Type:	Dry Type
Winding Material:	Copper or Aluminum;
Vector Group:	Yyn0 or Dyn11;
Tapping Method:	offloading Tap;
Protection Level:	IP00 (Ingress Protection grade 00);
Noise Level:	as IEC 60076.

CONSO·CN dry type transformer insulation class h Protection Cover:

Aluminum Alloy

A Transformer with Enclosure

Stainless Steel

CONSO·CN dry type transformer insulation class h in Process:

Winding

Casting Resin

Ready to assemble

Amorphous Alloy Core

CONSO·CN dry type transformer insulation class h Workshop:

Winding Workshop

Casting Storage Area

Winding Drying Area

Finished Product Storage

dry type transformer insulation class h Testing Center：

dry type transformer insulation class h Producing Equipment:

Transformer Oven

Casting Equipment

Foil winding machine

CONSO·CN dry type transformer insulation class h on Storage:

Dry type transformer insulation class h FAQ:

1. Is thedry type transformer insulation class hsuitable for indoor or outdoor installations?

A: Mostly, thedry type transformer insulation class install inan indoor environment, however, the outdoor installations is an option, if working environment has no better selection.

2. How does your factory provide customized service on adry type transformer insulation class h?

A: Besides the common option, clients also can take the alternatives as below:

a. The enclosure material: stainless steel, cold-rolled steel, and Aluminum alloy;

b. The way of input and output;

c. Noise Level;

3. What is theminimum order quantity will take to adry type transformer insulation class h?

A: Conso Electrical could produce thedry type transformer insulation class heven the client need one piece in all range of capacity rating.

4. How long does it typically take to deliver adry type transformer insulation class hafterA:ordering?

A: The deliver time is various as the product characteristics and order size. For instance, five piece of 630kva or 200kvadry type transformer insulation class hneed a half of month, but60 pieces of 630kva or 150 piece of 200 kvadry type transformer insulation class hwill take 30 days or less.

5. What is the IP rate to adry type transformer insulation class h?

A: For the transformer body, the IP rate is IP00. However, if the transformer equipment an enclosure, the IP rate could be IP 20 normally or IP 43 for outdoor environment.
