wind pad mounted transformer Introduction：

Product Overview:

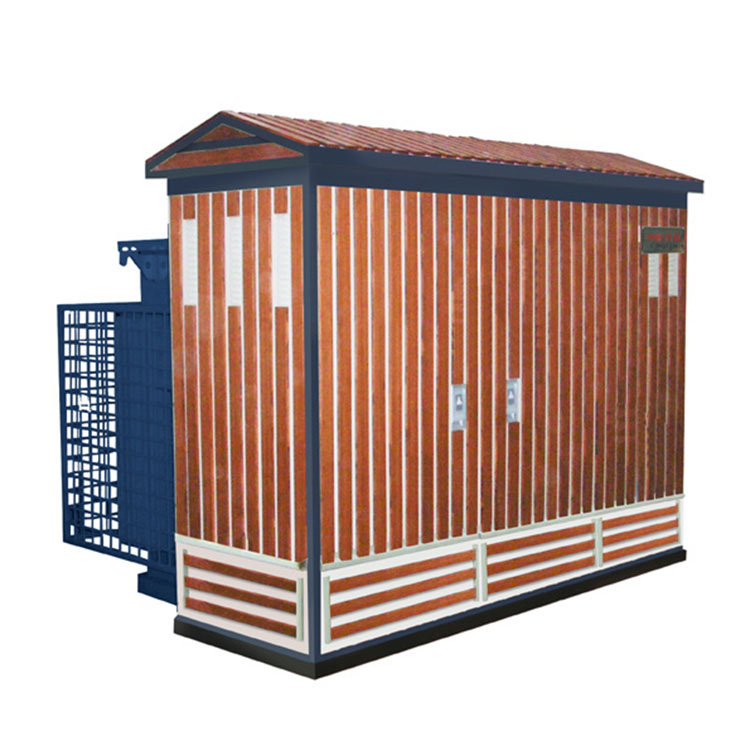

YBF-40.5/0.69 series wind pad mounted power transformer substation is a special transformer equipment for grid-connected output after the voltage of 0.6-0.69kV from the wind turbine is increased to 35kV or 10kV, which is a new product tailored for wind power generation by our company according to the requirements of domestic wind power generation market. It adapts to the trend of building wind power plants in a large scale nationwide, and is an ideal supporting product of wind power generation system that integrates reliability, safety, practicability and economy into one.

Product Characteristics:

1. The wind pad mounted transformer of the product adopts the high-quality silicon steel sheet material. After the electromagnetic optimization design, its no-load loss and load loss are lower than those of similar products, which ensures the full utilization of wind energy to the maximum extent;

2. Safety: The high-voltage part adopts the load switch + fuse composite apparatus, which can protect the wind pad mounted transformer quickly and reliably. The low-voltage part can adopt the circuit breaker or knife fuse switch as the main switch, and the small capacity transformer is configured to provide the 0.4KV lighting and power consumption of maintenance for the box-type transformer substation and wind tower;

3. High temperature resistance and strong overload operation ability;

4. Long Service Life: More than 20 years of service life;

5. Maintenance-free: There is no need to filter oil or change oil within the service life, and the sealing elements of the wind pad mounted transformer have the same service life as that of the wind pad mounted transformer;

6. High Protection Level: The box body of the wind power transformer adopts double-layer door sealing structure, all the closed parts of the doors are sealed with sealant, and the ventilation opening is equipped with dust-proof device, which can effectively prevent sand and dust, and the intrusion and protection level of rain and snow on wind power transformer reach IP54.

wind pad mounted transformer Technical Parameter:

CONSO·CN wind pad mounted transformer Detail:

Primary Distribution Side

Transformer Body

Secondary Distribution Side

Corrugated Radiator

Panel-Type Radiator

CONSO·CN wind pad mounted transformer Workshop:

wind pad mounted transformer in Process:

wind pad mounted transformer Testing Center：

CONSO·CN wind pad mounted transformer Ready to Ship:
