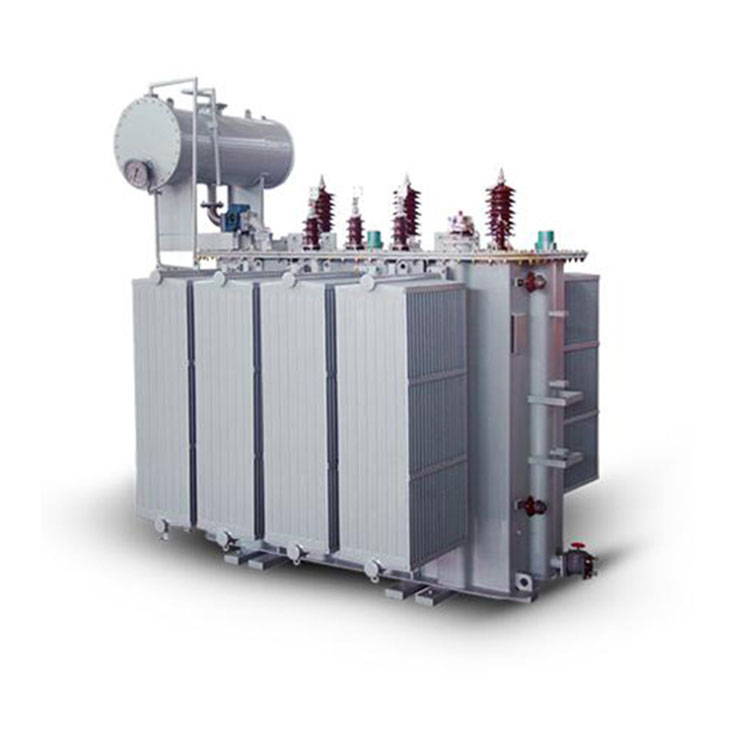

33kv 6.3 Mva Power And Distribution Transformer

As an experienced manufacturer, Conso Electrical Technology and Science Co., Ltd has produced 33kv 6.3 mva power and distribution transformers since 2006 in Yueqing City, Zhejiang Province, China. Conso Electrical produce a 33kv 6.3 mva power and distribution transformer to follow the standard of IEC 60076 strictly. Ever more, to support a wonderful using experience, Conso Electrical will combine working environment of terminal users with IEC 60076. each of 33kv 6.3 mva power and distribution transformer will be finished as the requirement of ISO 9001 and ISO 14001 in the workshop of Conso Electrical.

Send Inquiry

Product Description

Video

33kv 6.3 mva power and distribution transformer Introduction:

The 33kv 6.3 mva power and distribution transformer possess several advantages, including low loss, low noise level, high lightning protection level, strong ability to withstand sudden short circuits, and attractive appearance. In Conso Electrical, the 33kv 6.3 mva power and distribution transformer is crafted using advanced production equipment and manufacturing processes, along with high quality components, resulting in premium products. The 33kv 6.3 mva power and distribution transformer has the "four remote" functions of remote signaling, remote metering, remote controlling, and remote adjusting, which enables unattended substations through remote operation via computer.

The following is the feature of components:

The core is processed using advanced longitudinal and transverse shearing and stacking equipment with a three-stage stepped joint design that disperses gap distribution. it enhances magnetic flux direction, no load losses, no load currents, and noise level.

To enhance mechanical strength, the core employs a series of integral structures, including pull plates, pressure rings, silicon steel end face special adhesives.

The structure of high and low voltage windings is novel, which is reasonable arrangement of tapping zones and oil passage design, that improves mechanical strength and short circuit capability.

The oil tank adopts a bell type or suspended core structure. The tank of a 33kv 6.3 mva power and distribution transformer has smooth, simple, generous and beautiful lines.

33kv 6.3 mva power and distribution transformer Technical Parameter:

Rated Capacity:	6300 kva or 6.3 mva;
Mode:	SZ11-M-6300 or depends;
Voltage Ratio:	10/6.6 kV, 35/10 kV, etc;
Tapping Range:	±3*2.5%;
Tapping Method:	ONLTC;
No Loading Loss:	5.63 kW±15% or depends;
Loading Loss:	36.7 kW±15% or depends;
Impedance:	8.0% ± 15%;
Short Circuit Current:	≤0.50%;
Cooling System:	ONAN or ONAF;
