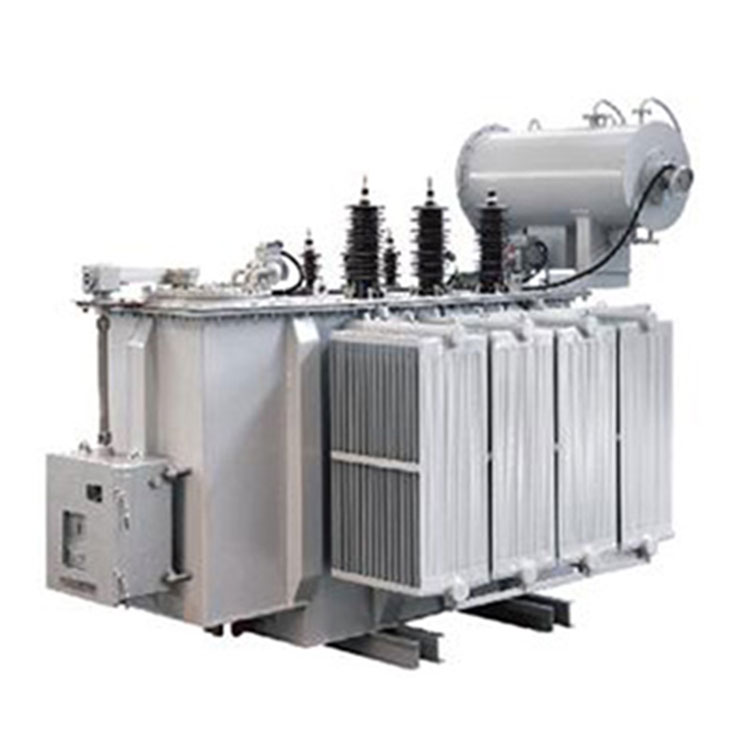

Conso Electrical Science and Technology Co., Ltd has taken significant strides in creating a competitive Step Up Transmission Transformer For Solar Power Plant. With 27 patents under our belt, we've designed an energy-efficient, resource-conscious, and space-saving solution. Our extensive experience in manufacturing large-capacity 35kV power and distribution transformers has made us industry leaders. We have a team of skilled production workers specialized in power and distribution transformers, operating state-of-the-art automated equipment. Our services cater directly to a range of sectors, including hydropower stations, mining areas, sewage treatment plants, and more. We're eager for the opportunity to host your visit to our factory.
1.Maintenance personnel should inspect the power transformer's sound, oil level, oil temperature, oil color, and other conditions during its operation to ensure that the transformer's sound, oil level, temperature, color, and other basic parameters are within normal standards.
2.Check whether the power transformer's casing is clean and tidy, whether the gas relay inside the power transformer is properly filled with oil, and whether there is any oil leakage or damage to explosion-proof tubes.
3.Inspect the proper functioning of the cooling system, load regulation device, and tap changer, ensuring that they meet voltage requirements.
4.Examine the condition of the bushings, looking for cleanliness, signs of leakage or discharge, proper connections of leads, and any indications of overheating.
5.Maintenance personnel should inspect the grounding of the main equipment and its auxiliary devices to ensure that all related equipment casings are properly grounded.
6.In the event of an emergency during the power transformer's operation, such as due to moisture, low temperatures, or rain leakage, maintenance personnel should promptly investigate the cause of the transformer's malfunction. They should identify the reasons for the transformer's failure during operation and take necessary actions to rectify the issue.
Capacity (kVA) |
Voltage |
Vector Group |
Short-Circuit impendance(%) |
loss(KW) |
Current of no loading(%) |
|||
HV |
Tap |
LV |
no loading |
loading |
||||
30 |
6 6.3 10 10.5 11 |
±5% |
0.4 |
Yzn11 |
4 |
100 |
630/600 |
2.3 |
50 |
150 |
910/870 |
2 |
|||||
63 |
180 |
1090/1040 |
1.9 |
|||||
80 |
200 |
1310/1250 |
1.9 |
|||||
100 |
230 |
1580/1500 |
1.8 |
|||||
125 |
270 |
1890/1800 |
1.7 |
|||||
160 |
310 |
2310/2200 |
1.6 |
|||||
200 |
380 |
2730/2600 |
1.5 |
|||||
250 |
460 |
3200/3050 |
1.4 |
|||||
315 |
540 |
3830/3650 |
1.4 |
|||||
400 |
650 |
4520/4300 |
1.3 |
|||||
500 |
780 |
5410/5150 |
1.2 |
|||||
630 |
Yyn0 Dyn11 |
4.5 |
920 |
6200 |
1.1 |
|||
800 |
1120 |
7500 |
1 |
|||||
1000 |
1320 |
10300 |
1 |
|||||
1250 |
1560 |
12000 |
0.9 |
|||||
1600 |
1880 |
14500 |
0.8 |
|||||
2000 |
5.5 |
2280 |
17200 |
0.5 |
||||
2500 |
2630 |
20500 |
0.5 |
Transformer Winding:
Transformer in Application:
Winding Workshop |
Coil Drying Area |
Oil Filling Area |
Finished Product Area |
Transformer Oven |
Casting Equipment |
Foil winding machine |
Wooden Box |
Steel Structure |
