To produce a competitive 2.5 mva power and distribution transformer, Conso Electrical Science and Technology Co., Ltd has developed 27 patents to design a 2.5 mva power and distribution transformer, which is more energy efficient, less material consuming and less space occupying. Conso Electrical accumulated extensive experience on making large capacity 35kv power and distribution transformers. The company has expert production workers of power and distribution transformers to operate automatic equipment. We provide service direct to the hydropower station, mining area, sewage-treatment plant and etc. We desire to get the opportunity that you would visit our factory.
⑴For 2.5 mva power and distribution transformers, the foundation should be elevated 0.2 meters above the ground. In waterlogged areas, a drainage channel should be provided around the transformer. A brick or stone enclosure wall should be erected around the 2.5 mva power and distribution transformer, with a minimum height of 1.8 meters. The enclosure wall's door should be made of fire-resistant materials, located on the low-voltage side of the 2.5 mva power and distribution transformer, should open outward, and should be equipped with a lock. Bamboo or wooden fences should not be used.
⑵2.5 mva power and distribution transformers installed on platforms or pedestals should have a minimum height of 2.5 meters.
⑶When outdoor, if two or more 2.5 mva power and distribution transformers are installed, the minimum distance between their casings should be no less than 1.25 meters.
⑷The 2.5 mva power and distribution transformer casing should be well-maintained.
⑸The distance between the transformer and flammable buildings should not be less than 5 meters, and the distance from fire-resistant buildings should not be less than 3 meters.
⑹Install a warning sign on the enclosure wall or pedestal stating "Caution: High Voltage - No Entry" in English.

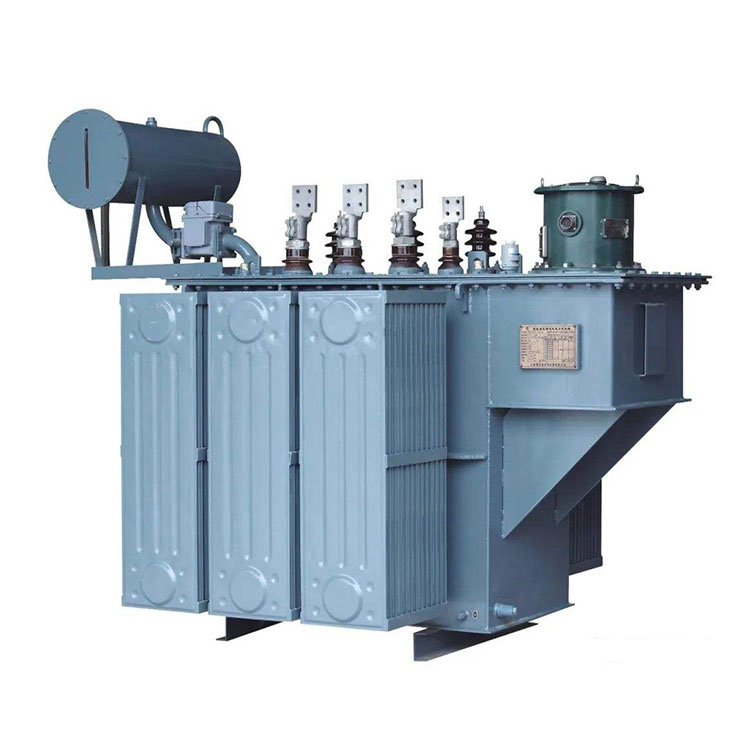

Rated Capacity: ; | 2500 kva or 2.5 mva |
Mode: | S11-M-2500 or depends; |
Primary Voltage: | 10kv, 11kv, 15kv, 34.5kv or depends; |
No loading loss: | 2290 W±10% or depends; |
loading loss: | 21200 W±10% or depends; |
No loading Current: | ≤0.40% |
Impedance: | 5.0%±10% ; |
Vector Group: | Dyn11, Yyn0, Yd11; |
Tapping Method: | overall 5 steps, 2.5% for each step. off-line or on-line; |
Cooling System: | ONAN. |
Transformer Winding:
Transformer in Application:
Winding Workshop |
Coil Drying Area |
Oil Filling Area |
Finished Product Area |
Transformer Oven |
Casting Equipment |
Foil winding machine |
Wooden Box |
Steel Structure |
