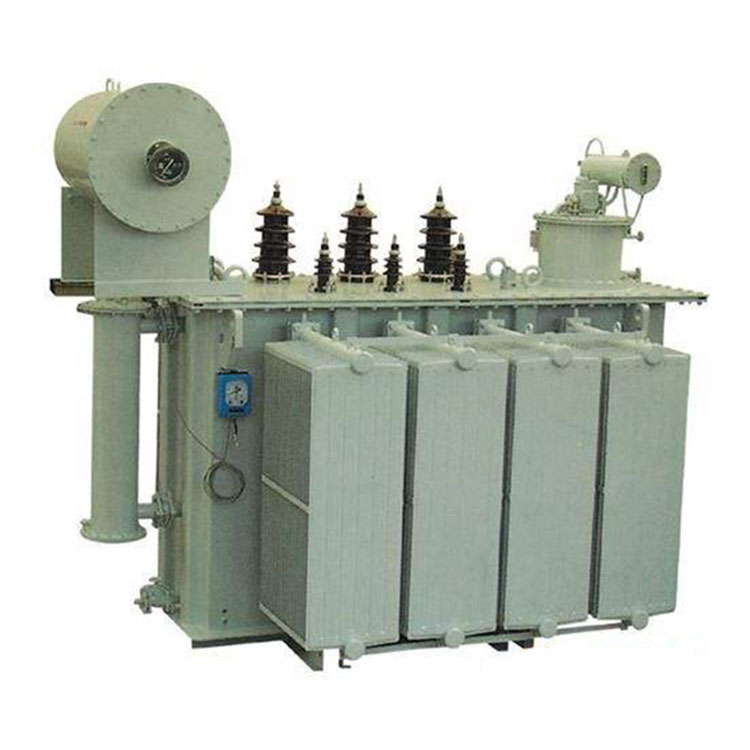

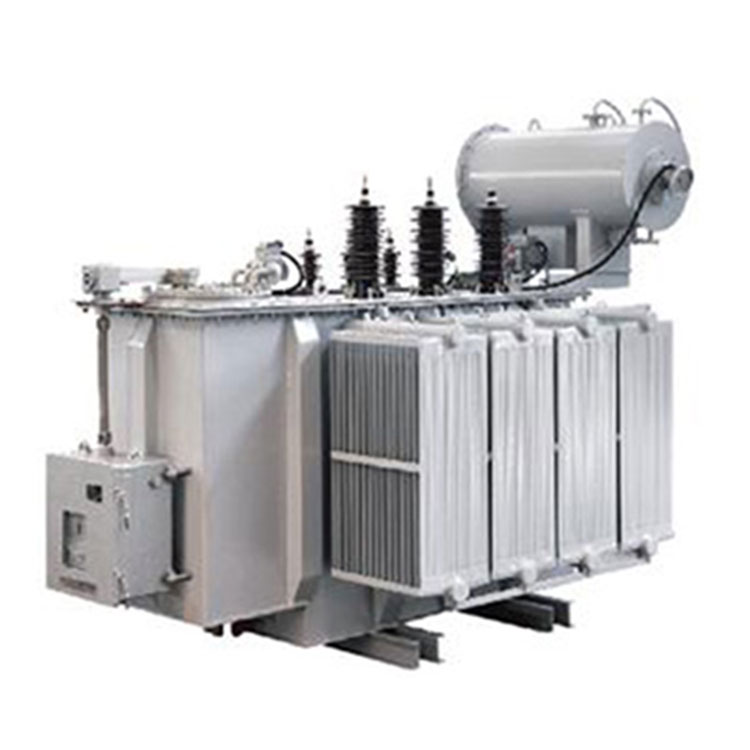

Conso Electrical Technology and Science Co., Ltd has the ability to assemble a consistent quality of 5mva substation step down transformer. First, Conso Electrical will design the power transformer as the requirement of the clients within 3 days. Meanwhile, the raw material and components used on the power transformer is from suppliers which have a more than 10 years’ business relationship with Conso Electrical. Each of 5mva substation step down transformer is essential to experience required tests, evermore, the Non-destructive Testing will take a longer duration as the long distance shipping, such as leak testing.
1.Proximity to Load Center: Only by being close to the load center can one shorten the length of the low-voltage network, reduce infrastructure costs, decrease energy losses, achieve higher economic benefits, and facilitate operation and maintenance.
2.Avoiding Flammable and Explosive Areas: This primarily involves avoiding flammable materials, such as gasoline, diesel, paint, alcohol, stacks of dry grass, and other liquid and solid flammable substances, as well as staying away from explosive areas, such as explosives depots, fireworks factories, and facilities with explosive chemicals.
3.Avoiding Contaminated Areas: Locations with significant contamination can accelerate transformer insulation aging and corrode conductors. Therefore, areas with heavy dust and corrosive gases should be avoided.
4.Avoiding Low-Lying Areas: In other words, avoiding areas that are prone to being inundated by rain or floods in normal years.
Rated Capacity: | 5000 kva; |
Mode: | S11-M-5000 or depends; |
Voltage Ratio: | 33/11 kV, 10.5/6.3 kV, 22/13.8 etc; |
No loading loss: | 4.10 kW±10% or depends; |
loading loss: | 31.3 kW±10% or depends; |
Impedance: | 5.5% ± 10%; |
Short Circuit Current: | ≤0.40%; |
Cooling method: | ONAN; |
Rated Frequency: | 50 or 60Hz; |
Transformer Winding:
Transformer in Application:
Winding Workshop |
Coil Drying Area |
Oil Filling Area |
Finished Product Area |
Transformer Oven |
Casting Equipment |
Foil winding machine |
Wooden Box |
Steel Structure |
